Valve Cover: Service and Repair

Valve cover

Operation number: 21144-2

Removal

Remove the inner gasket, timing cover Refer to: Gasket, inner timing cover, B6324S5, B6324S4 Gasket, Inner Timing Cover Gasket, inner timing cover, B6304T4 Gasket, Inner Timing Cover

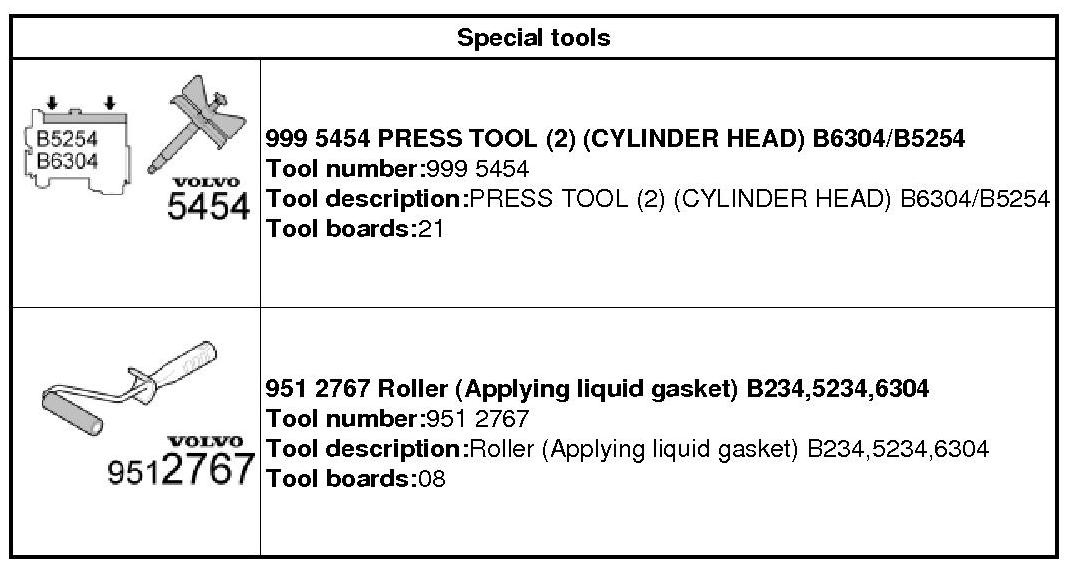

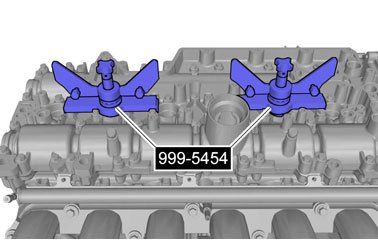

999 5454 PRESS TOOL 999 5454 Press Tool

Caution! Take extra care not to damage the mating faces.

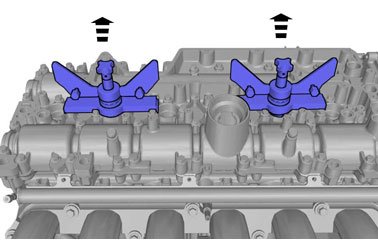

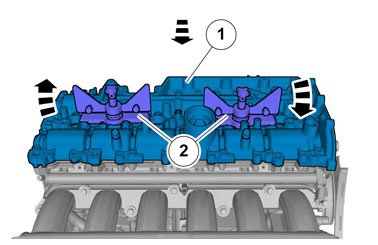

1.
Note! Only use moderate force.

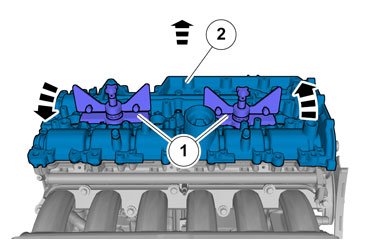

2. Caution! Take extra care when handling the components.

Caution! Note the position of the components before removal.

Caution! Note the position of the components before removal.

Installation

Caution! Make sure that the mating faces are clean and free of foreign material.

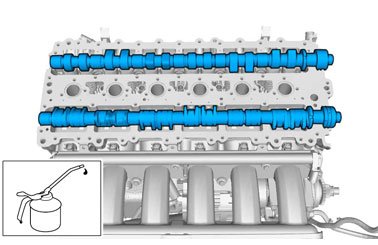

Caution! Make sure that the oil galleries are clean and free of foreign material.

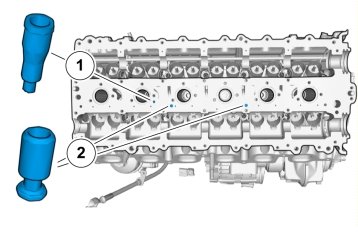

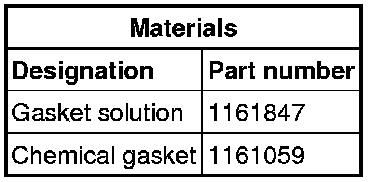

Use: Gasket solution, 1161847

951 2767 Roller 951 2767 Roller

Use: Chemical gasket, 1161059

Note! Make sure that these components are installed to the noted removal position.

Note! Make sure that the installation marks are aligned.

Caution! Take extra care not to damage the mating faces.

1. Caution! Take extra care when handling the component.

2.
Note! Only use moderate force.

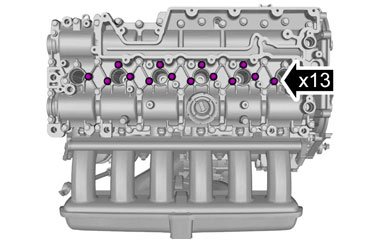

Torque: M7, 17 Nm

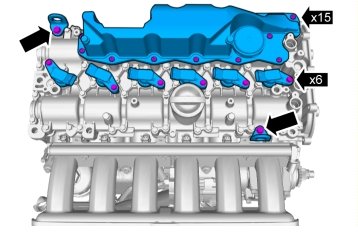

1. Torque: M6, 10 Nm

2. Torque: M10, 50 Nm

Torque: M6, 10 Nm

Install gasket inner timing gear casing Refer to: Gasket, inner timing cover, B6324S5, B6324S4 Gasket, Inner Timing Cover Gasket, inner timing cover, B6304T4 Gasket, Inner Timing Cover
