Transmission Auxiliary Unit Rear






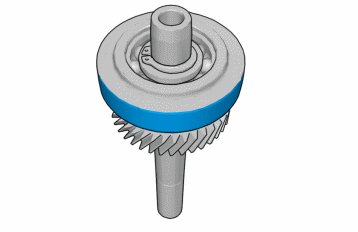

Transmission auxiliary unit rear

Note! Some variation in the illustrations may occur, but the essential information is always correct.
























Removal

Caution! The components work together. If one component is damaged, both must be replaced at the same time.

Note! Removal steps in this procedure may contain installation details.







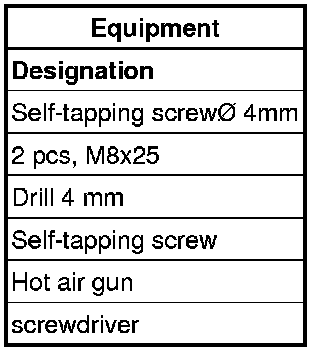

Remove the following items:
- generator. Refer to: Generator, B6304T4 Service and Repair Generator, B6324S5, B6324S4 Service and Repair
- inner timing cover. Refer to: Gasket, inner timing cover, B6304T4 Gasket, Inner Timing Cover Gasket, inner timing cover, B6324S5, B6324S4 Gasket, Inner Timing Cover
- carrier plate. Refer to: Carrier plate, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC, B6324S4, TF-80SC AWD Service and Repair















Caution! The components work together. If one component is damaged, both must be replaced at the same time.

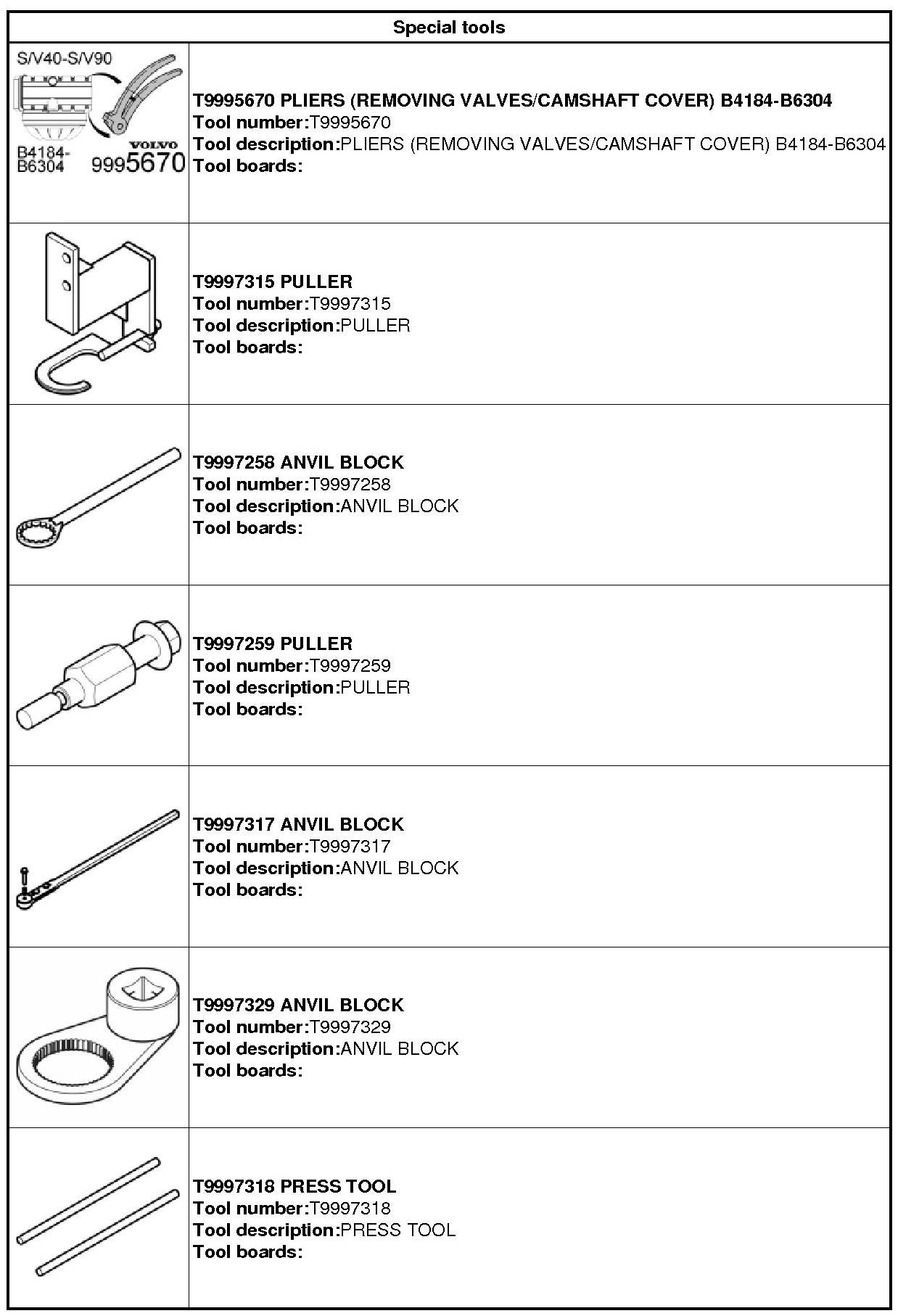

999 5670 Pliers 999 5670 Pliers

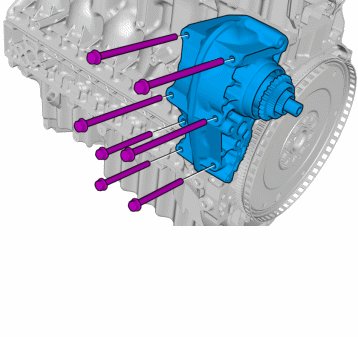

Carefully break at the lugs to detach the gear housing from the cylinder block.






Caution! Be extra careful when handling this component.

To ensure that the lock pin follows at removal, screw a self-tapping screw into the lock pin.
1. Use: Self-tapping screw 4mm. screw in the lock pin.

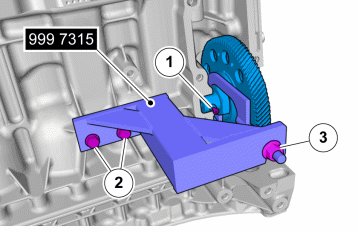

2. 999 7315 Puller 999 7315 Puller Use: 2 pcs, M8x25.
3. Use the nut and carefully pull out the unit. Check that the lock pin follows!

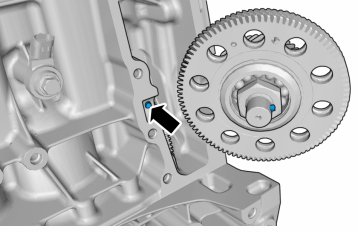

After removal, inspect the lock pin. If the lock pin has snapped in the cylinder block, the shaft has worn in its bearing recess, which means that the cylinder block must be discarded.

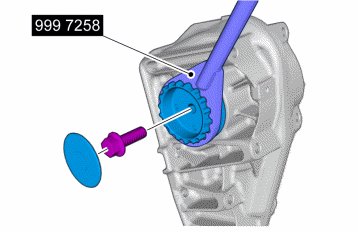

999 7258 Counterhold 999 7258 Counterhold

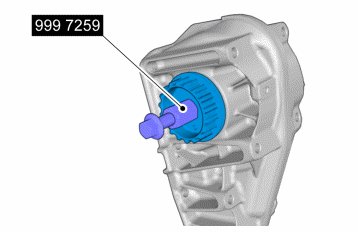

999 7259 Puller 999 7259 Puller

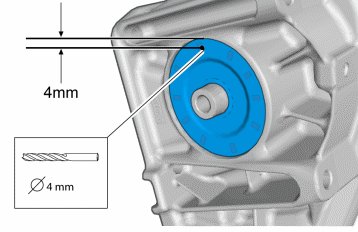

Use: Drill 4 mm.





Use: Self-tapping screw.






Note! Considerable force is required for this task.

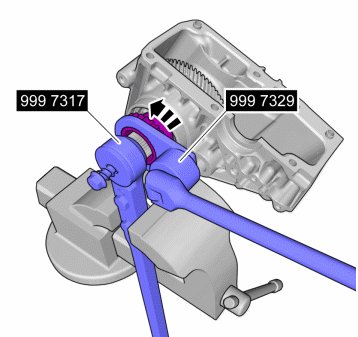

999 7317 Counterhold 999 7317 Counterhold
999 7329 Counterhold 999 7329 Counterhold

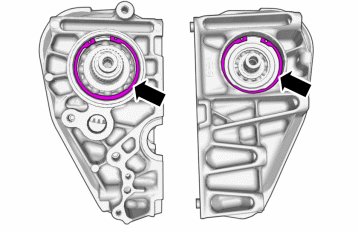

Remove the snap rings on both sides.





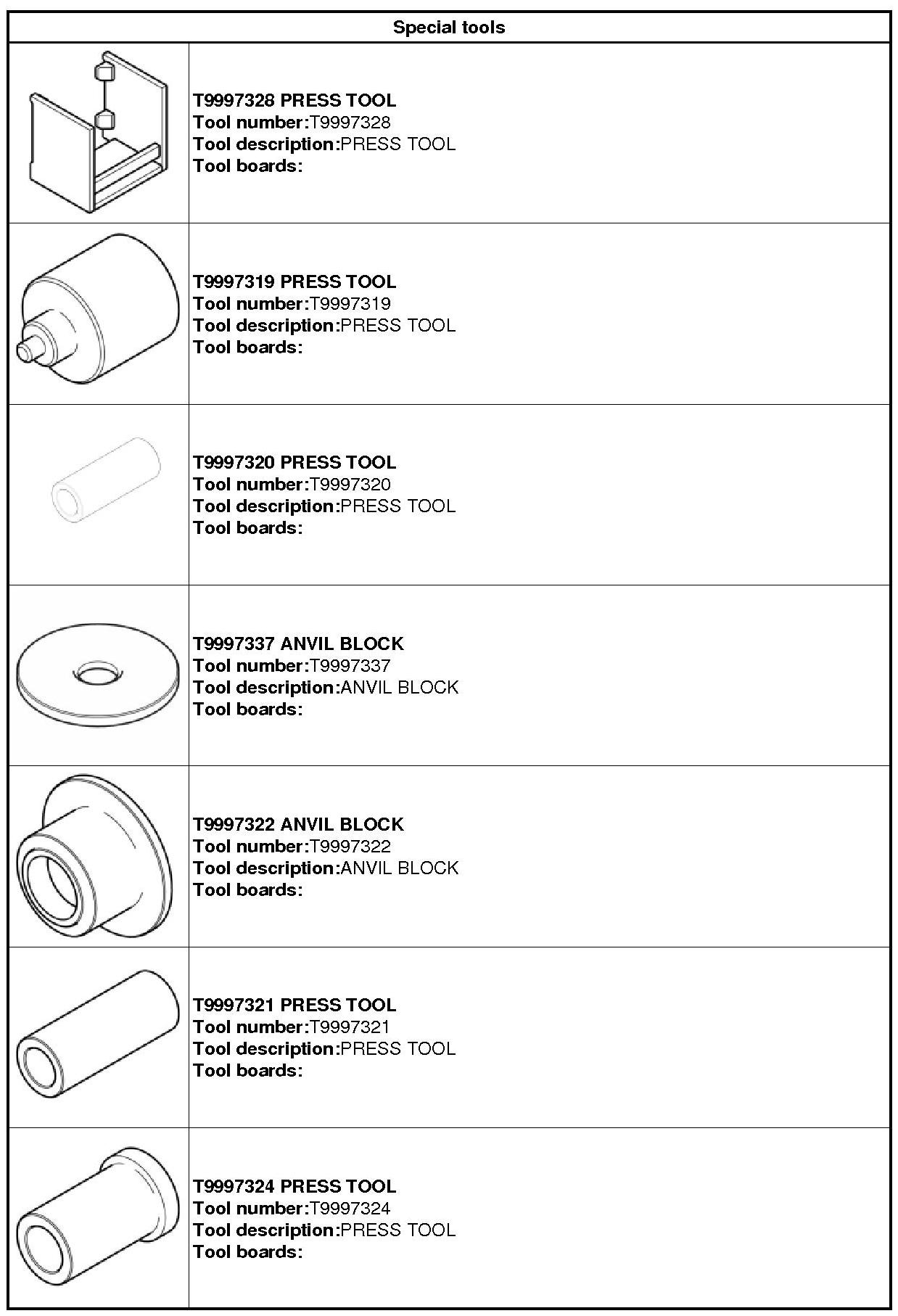

999 7318 Press tool 999 7318 Press Tool
999 7328 Press tool 999 7328 Press Tool
Place the gear housing in a press as illustrated.
1. Use: Hot air gun. Heat the housing around the bearing recess to 70-140° C.
999 7319 Press tool 999 7319 Press Tool
Press out the auxiliaries shaft and bearing.





999 7320 Press tool 999 7320 Press Tool
999 7337 Counterhold 999 7337 Counterhold
999 7319 Press tool 999 7319 Press Tool
This procedure releases the cam drive shaft's pulley.





999 7322 Counterhold 999 7322 Counterhold
999 7337 Counterhold 999 7337 Counterhold

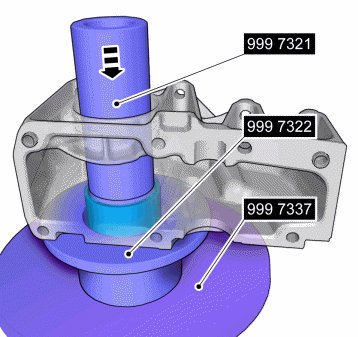

999 7321 Press tool 999 7321 Press Tool

Installation






Note! do not release the transportation protection ring in the bearing!

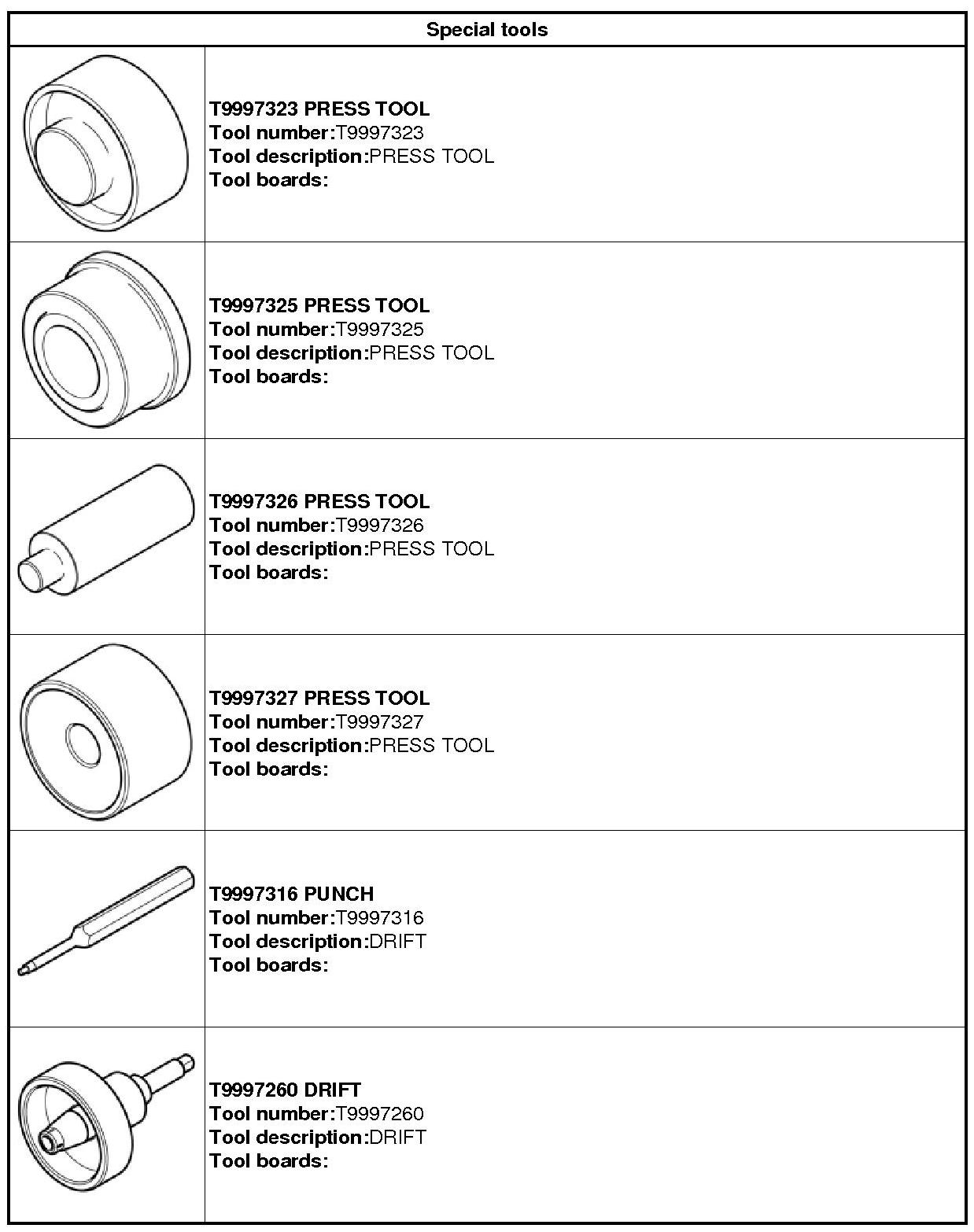

Install a new bearing.

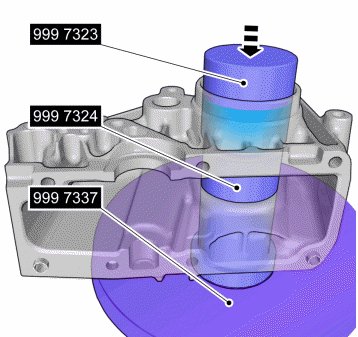

999 7324 Press tool 999 7324 Press Tool
999 7337 Counterhold 999 7337 Counterhold
999 7323 Press tool 999 7323 Press Tool
Press in the bearing to a maximum of 25 kN.





Install the cam drive shaft's pulley and cam drive shaft.

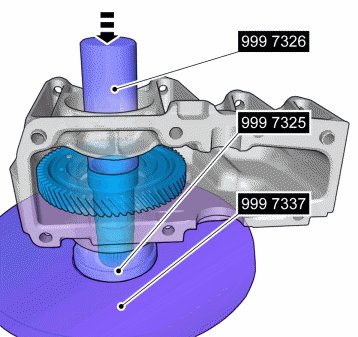

999 7325 Press tool 999 7325 Press Tool
999 7337 Counterhold 999 7337 Counterhold
999 7326 Press tool 999 7326 Press Tool
Press in the cam drive shaft to a maximum of 45 kN.






Use: Isopropanol, 1161721

Clean the outside of the bearing.






Use: Isopropanol, 1161721

Clean the bearing's seat in the gear housing.

Use: Metal adhesive, 1161722

Apply metal adhesive as illustrated.

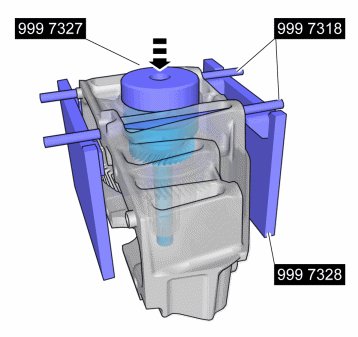

999 7328 Press tool 999 7328 Press Tool
999 7318 Press tool 999 7318 Press Tool
999 7327 Press tool 999 7327 Press Tool
Press in the auxiliaries shaft with its bearing. Press to a maximum of 30 kN.





Install the snap rings.





999 7317 Counterhold 999 7317 Counterhold
999 7329 Counterhold 999 7329 Counterhold
Torque: Chain wheel, 400 Nm






Caution! Be extra careful when handling this component.

999 7316 Drift 999 7316 Drift











Note! Make sure that the mating faces are clean and free of foreign material.

Use: Liquid gasket, 1161771






Caution! Be extra careful when handling this component.

Note! Only tighten the bolts finger tight at this stage.

Ensure that the guide sleeves are in place.





Torque: Gear housing Stage 1: 10 Nm Stage 2: 24 Nm






Note! Make sure that the mating faces are clean and free of foreign material.

Use: Liquid gasket, 1161771

Use: screwdriver.
1.
2.
Note! Make sure that new components are installed.

3. Lock by deforming the washer.






Note! Use a new seal.

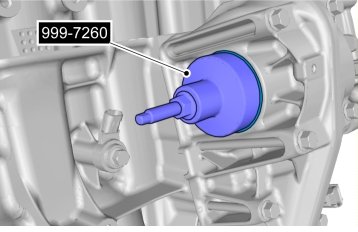

999 7260 Drift 999 7260 Drift





999 7258 Counterhold 999 7258 Counterhold
Torque: Intermediate shaft alternator side, 40 Nm





Torque: M6, 10 Nm


Install the following items:
- inner timing cover. Refer to: Gasket, inner timing cover, B6324S5, B6324S4 Gasket, Inner Timing Cover Gasket, inner timing cover, B6304T4 Gasket, Inner Timing Cover
- generator. Refer to: Generator, B6304T4 Service and Repair Generator, B6324S5, B6324S4 Service and Repair
- carrier plate. Refer to: Carrier plate, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC, B6324S4, TF-80SC AWD Service and Repair
