Part 1

Camshafts




















Removal

Drain cooling system, draining, filling, and bleeding Refer to: Cooling system - draining, charging and bleeding, B6304T4, B6324S5, B6324S4 Service and Repair

Remove the crankshaft seal, front Refer to: Crankshaft front seal, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC, B6324S4, TF-80SC AWD Service and Repair

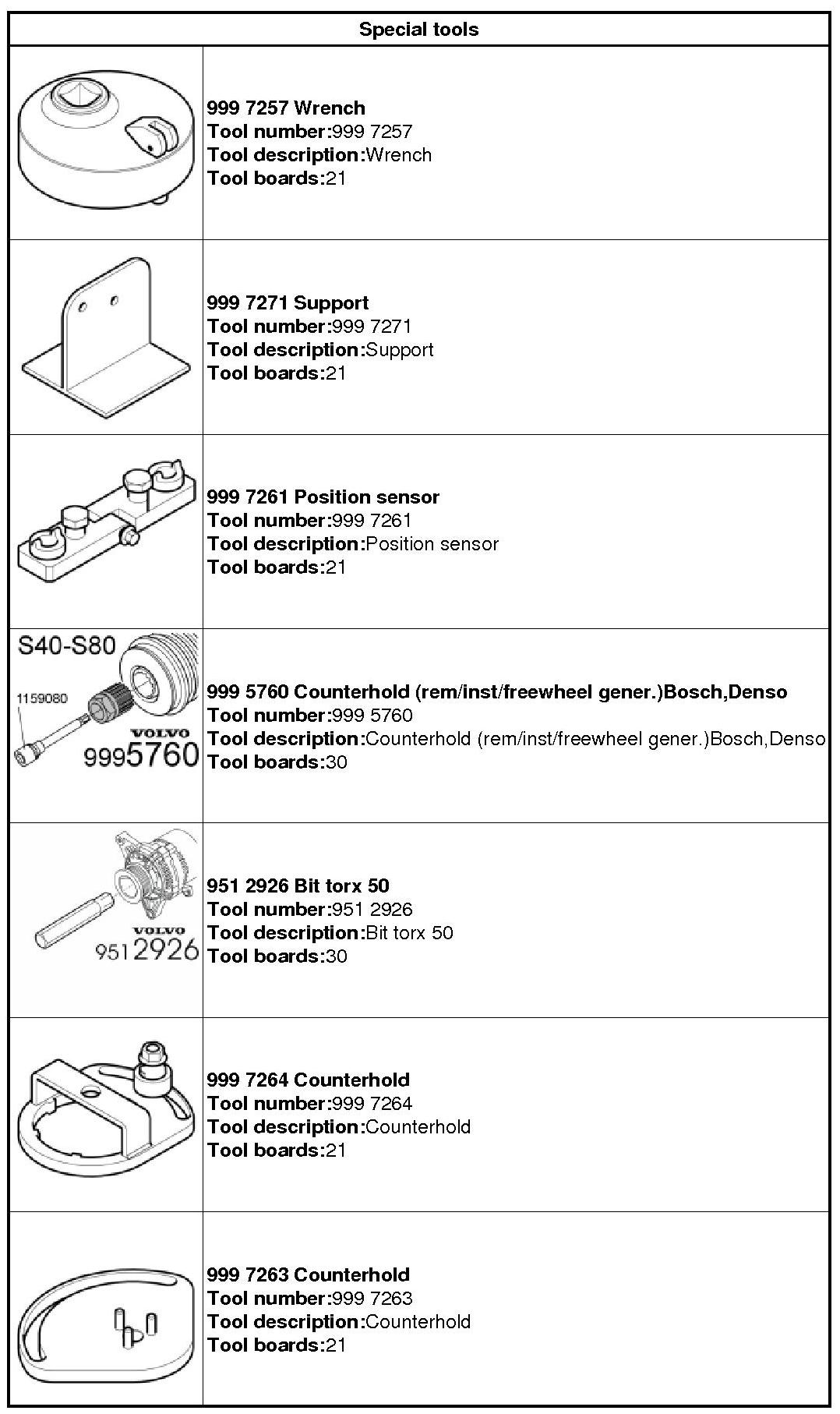

999 7257 Wrench 999 7257 Wrench




999 7271 Support 999 7271 Support
























999 7261 Position sensor 999 7261 Position Sensor

Remove the auxiliaries belt Refer to: Accessory Drive Belt Service and Repair Accessory Drive Belt, B6304T4 Service and Repair









Caution! The alignment procedure must be carried out in full even if only one part of the accessory drive component bracket has been removed.








999 5760 Counterhold 999 5760 Counterhold 951 2926 Bit torx 50 951 2926 Bit Torx(R) 50























999 7264 Counterhold 999 7264 Counterhold 999 7263 Counterhold 999 7263 Counterhold 999 7272 TORX 60 999 7272 Torx(R) 60













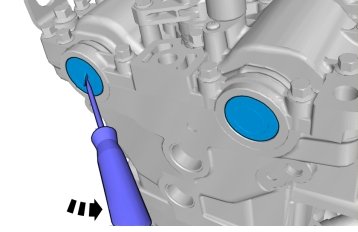

Warning! Be prepared to collect escaping fluid.

















Caution! Note the position of the components before removal.





Caution! Make sure that the oil galleries are clean and free of foreign material.

Caution! Make sure that the mating faces are clean and free of foreign material.

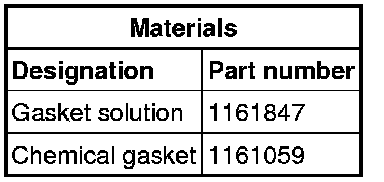

Use: Gasket solution, 1161847

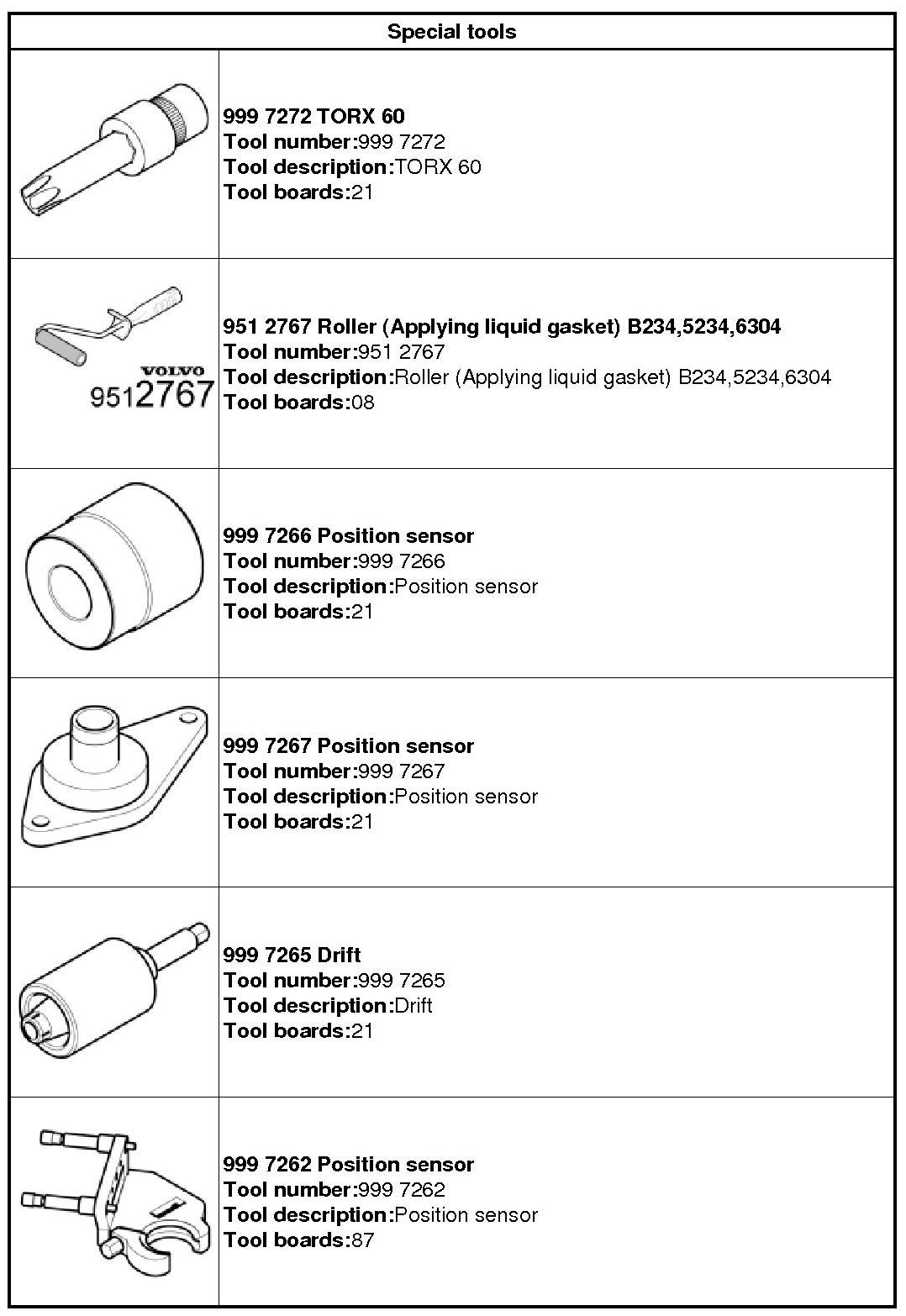

951 2767 Roller 951 2767 Roller

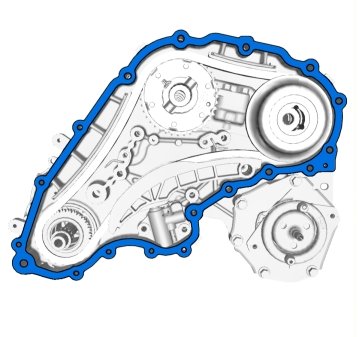

Use: Chemical gasket, 1161059





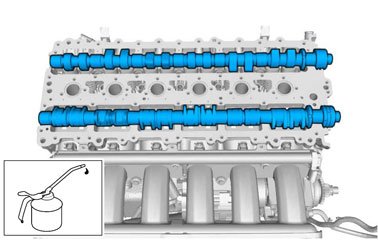

Caution! Make sure that the oil galleries are clean and free of foreign material.





Note! Make sure that these components are installed to the noted removal position.
