Home >> Volvo >> 2010 >> XC70 AWD L6-3.0L Turbo VIN 99 B6304T2 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Wiper and Washer Systems >> System Diagram >> Changes Introduced Up to April 2009 Inclusive >> Wiper/Washer Windshield

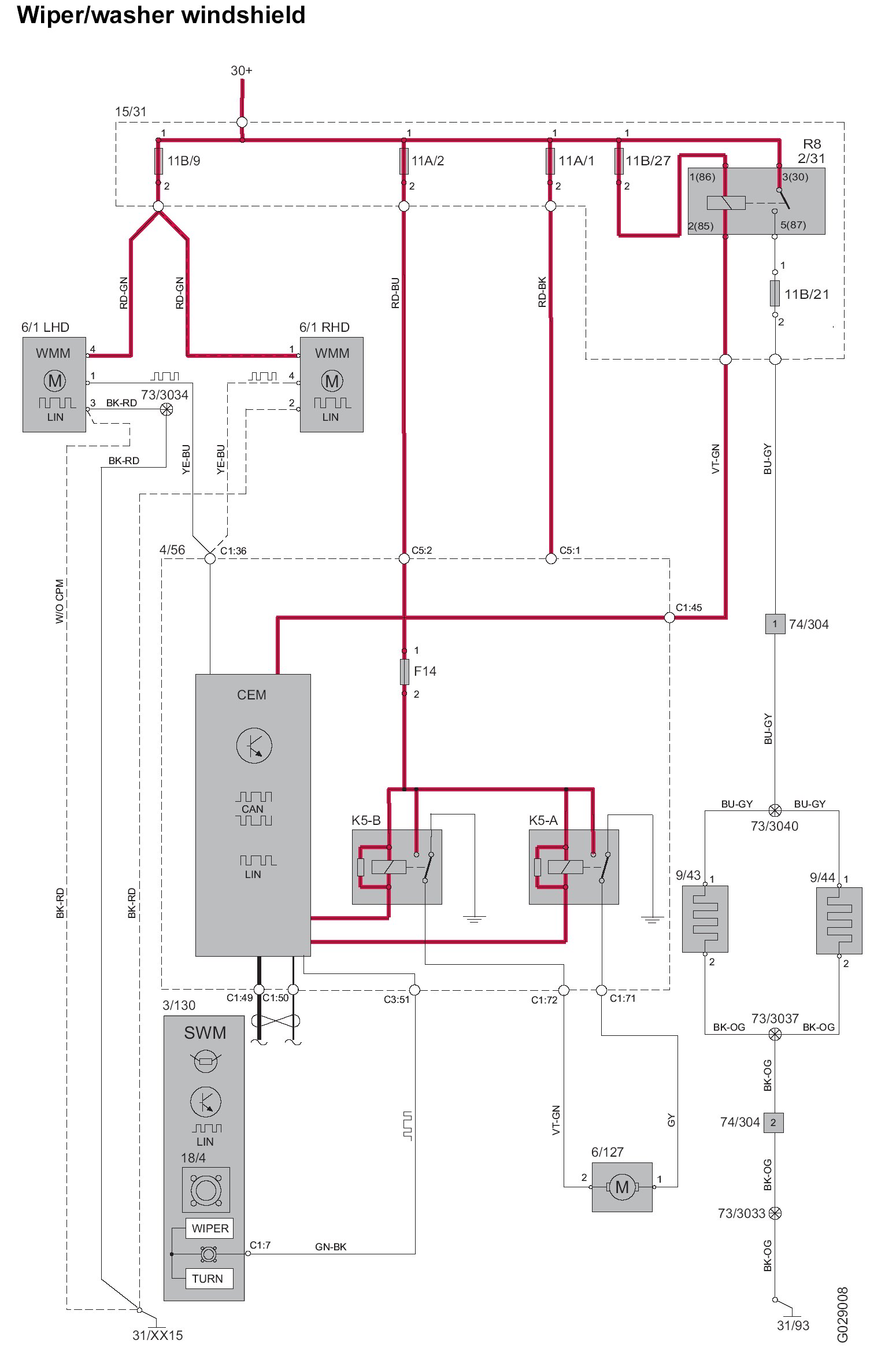

Wiper/Washer Windshield



Wiper/Washer Windshield


Wiper/Washer Windshield:






Diagram Legend: Changes Introduced Up to April 2009 Inclusive

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: Changes Introduced Up to April 2009 Inclusive
