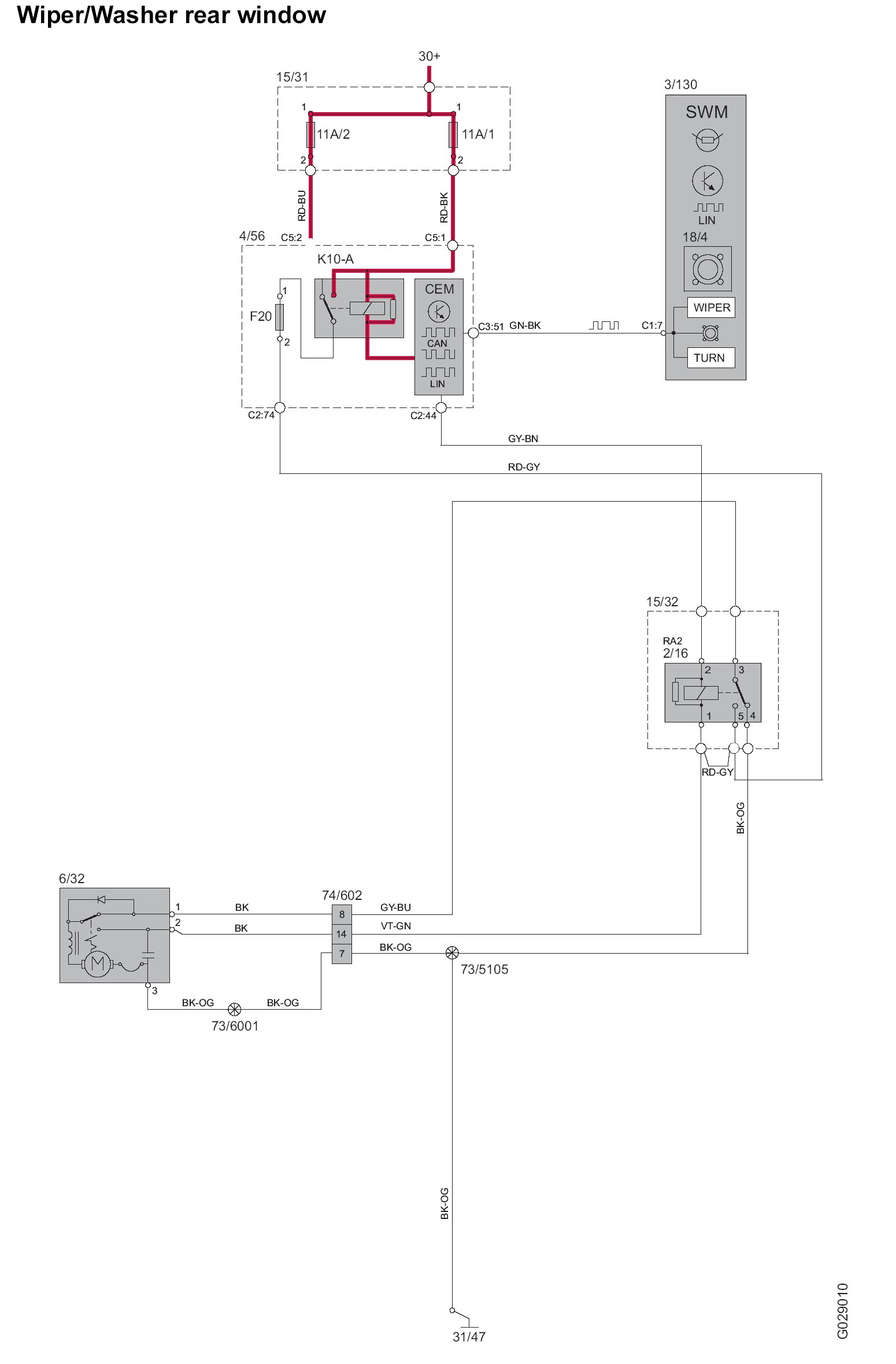

Wiper/Washer Rear Window



Wiper/Washer Rear Window


Wiper/Washer Rear Window:






Diagram Legend: Changes Introduced Up to April 2009 Inclusive

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: Changes Introduced Up to April 2009 Inclusive
pro multis Credits:Operation CHARM About Operation CHARM
