Changes Introduced Up to April 2009 Inclusive

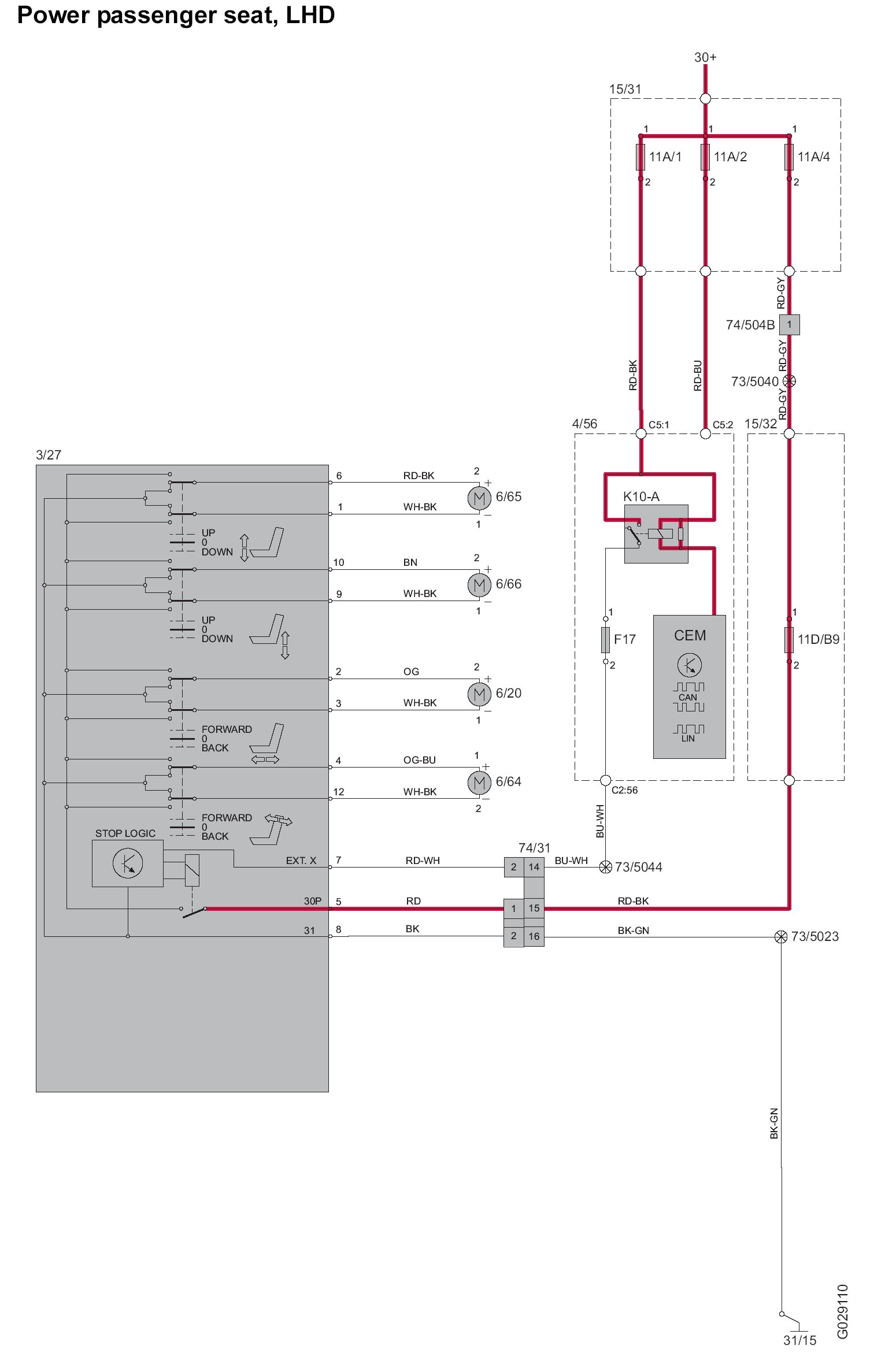

Power Passenger Seat, LHD

Power Passaenger Seat, LHD:

Diagram Legend: Changes Introduced Up to April 2009 Inclusive

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: Changes Introduced Up to April 2009 Inclusive
