Home >> Volvo >> 2010 >> XC70 AWD L6-3.0L Turbo VIN 99 B6304T2 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Seat Temperature Element >> Changes Introduced Up to and Including June 2009 >> Heated Front Seats Without Fans

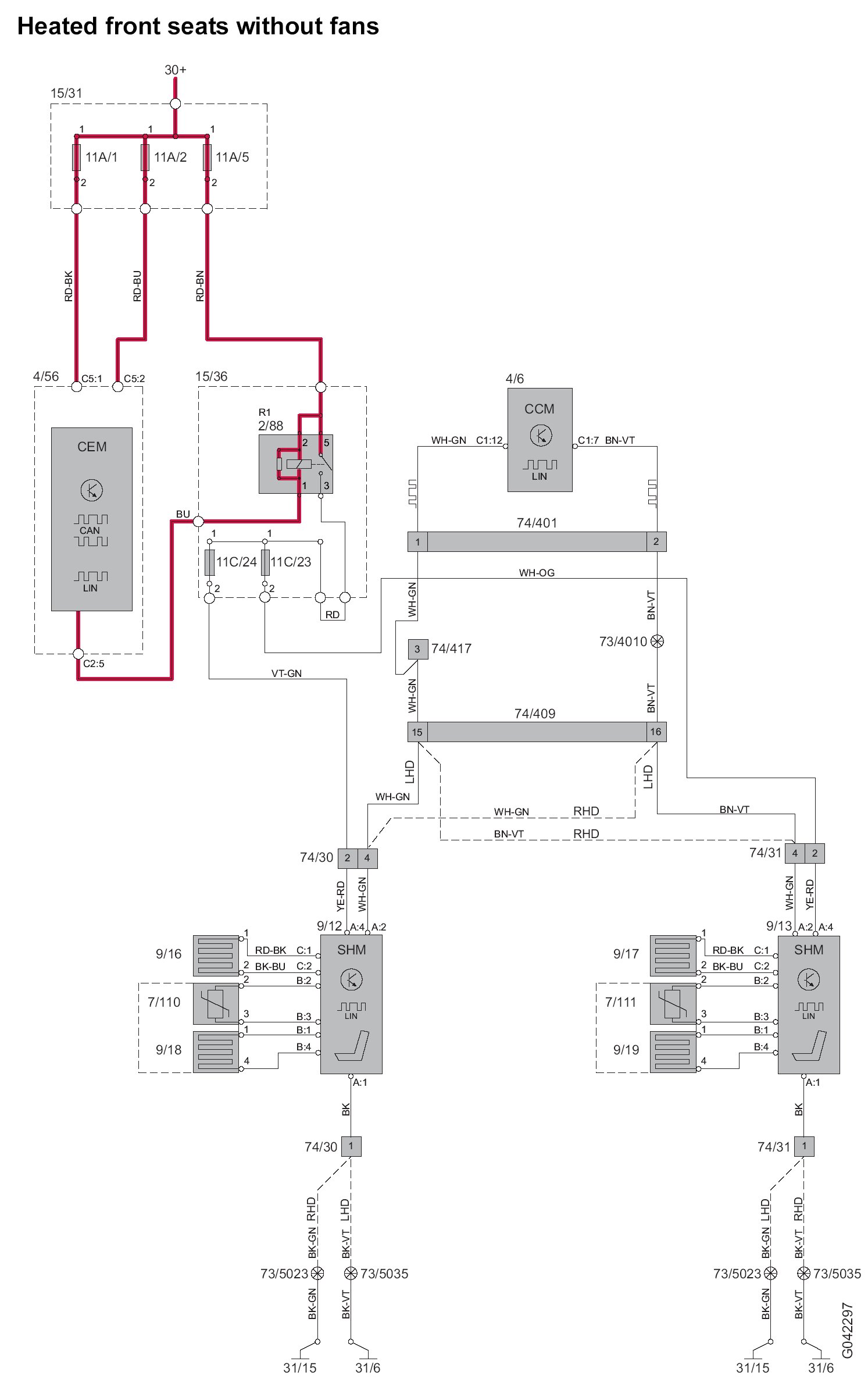

Heated Front Seats Without Fans



Heated Front Seats Without Fans


Heated Front Seats Without Fans:






Diagram Legend: Changes Introduced Up to and Including June 2009

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: Changes Introduced Up to and Including June 2009
