Climate Control System

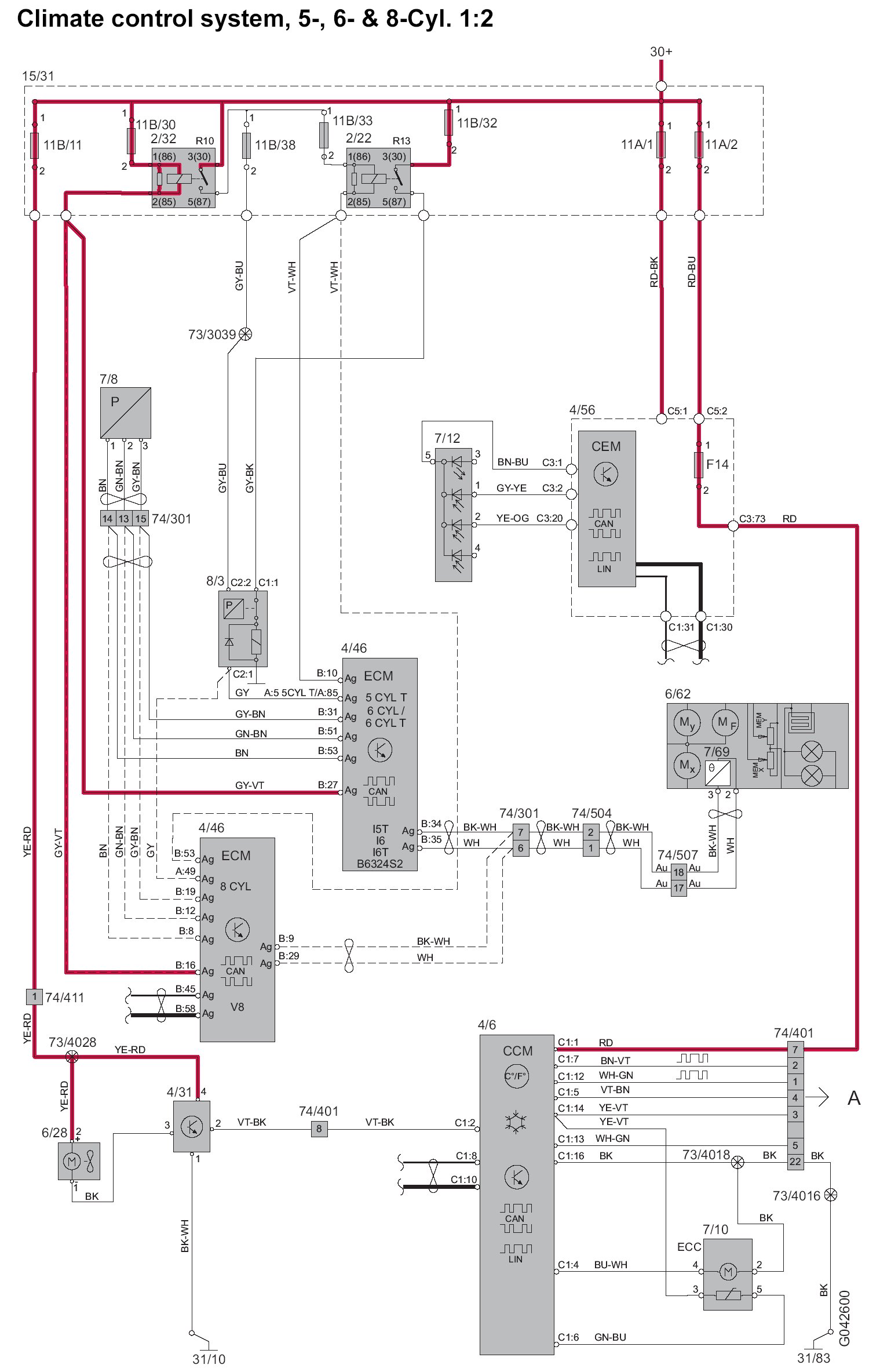

Climate Control System, 5-, 6- & 8-Cyl.

Climate Control System, 1:2:

Climate Control System, 1:2:

Diagram Legend: Changes Introduced Up to and Including June 2009

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: Changes Introduced Up to and Including June 2009
