Refrigeration Box Rear Seat

Refrigeration Box Rear Seat

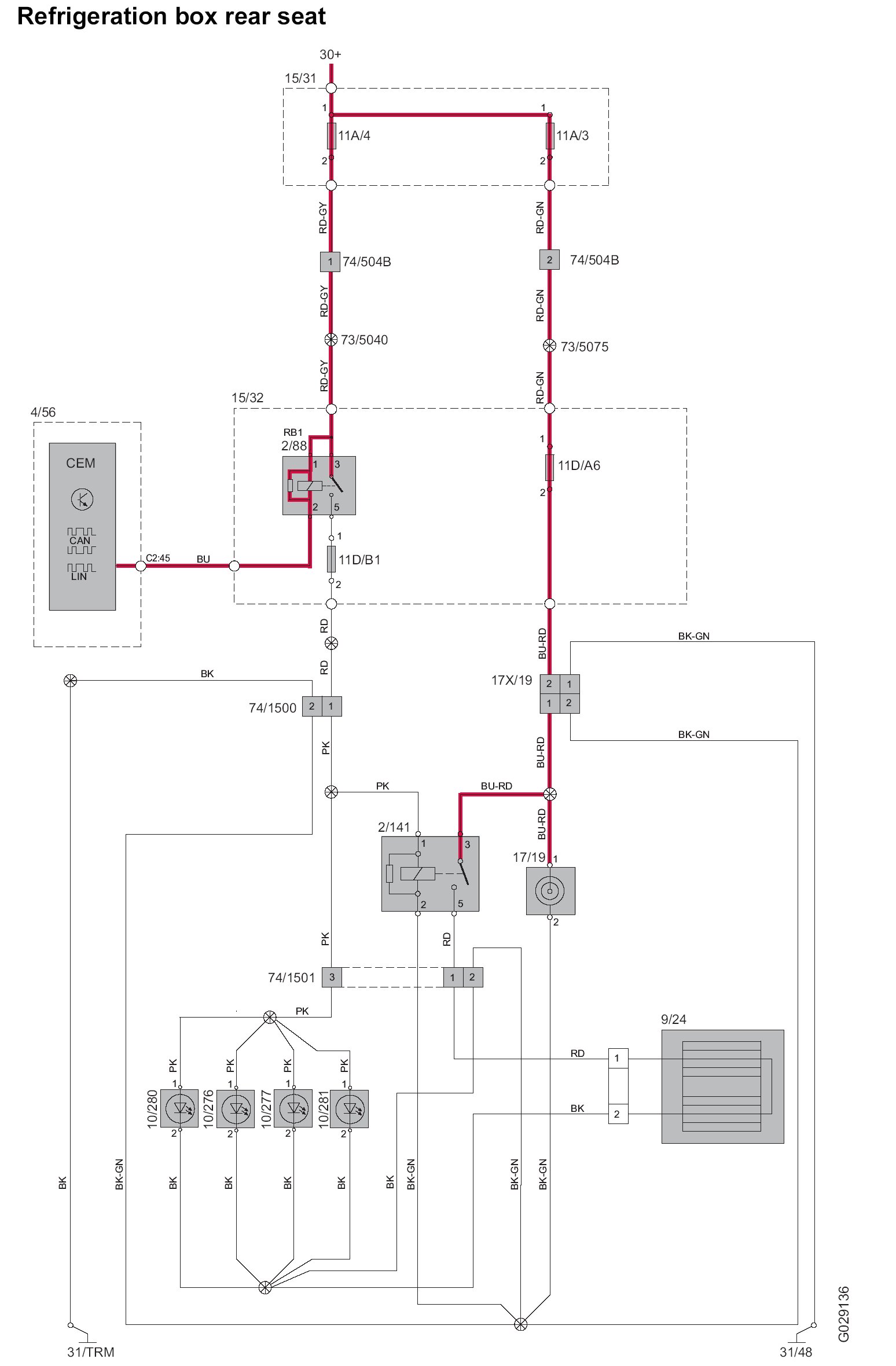

Refrigeration Box Rear Seat:

Diagram Legend: Changes Introduced Up to April 2009 Inclusive

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: Changes Introduced Up to April 2009 Inclusive
