Changes Introduced Up to April 2009 Inclusive

Interior Lighting, LHD

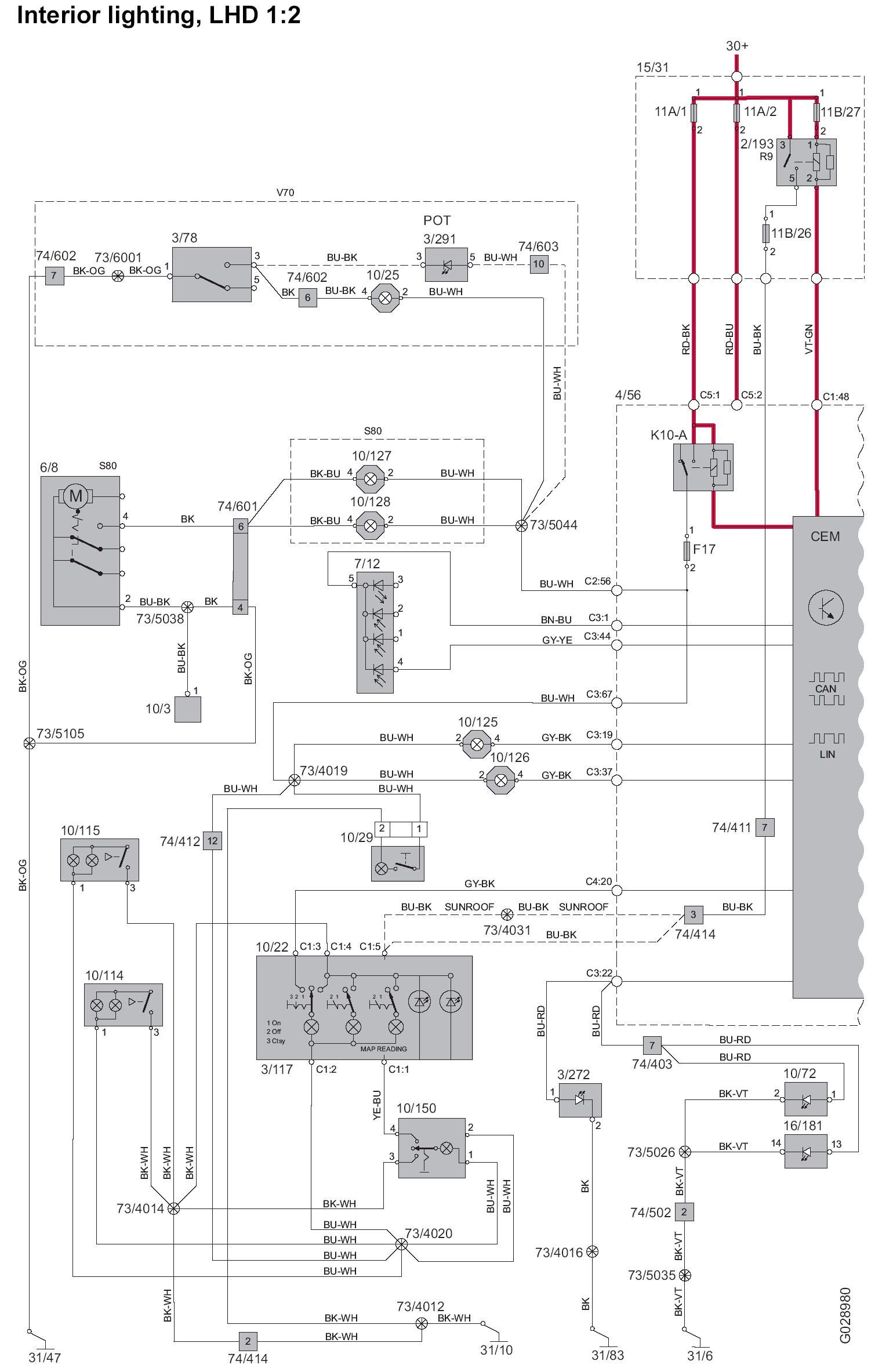

Interior Lighting, LHD 1:2:

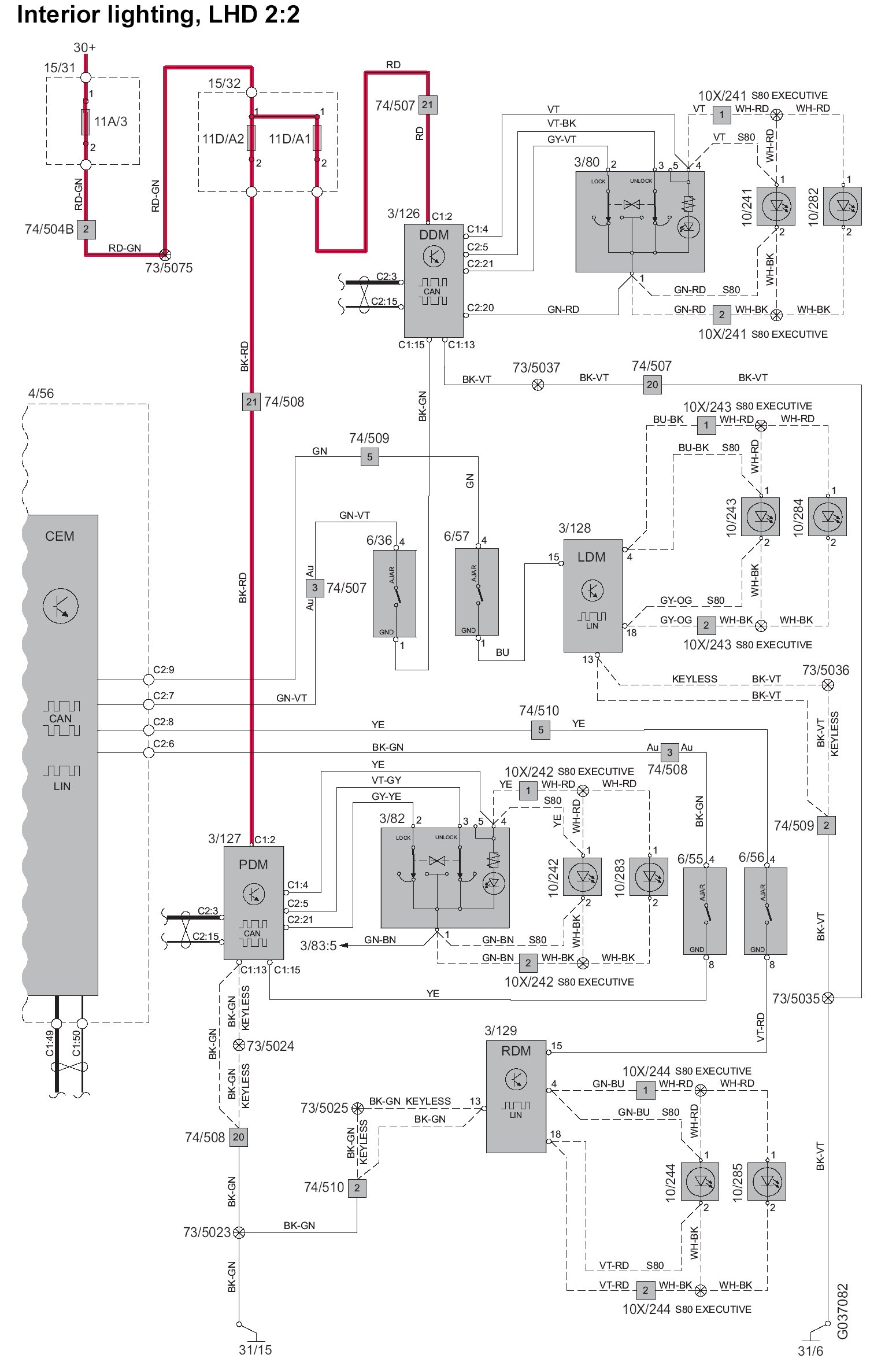

Interior Lighting, LHD 2:2:

Diagram Legend: Changes Introduced Up to April 2009 Inclusive

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: Changes Introduced Up to April 2009 Inclusive
