Cruise Control: Service and Repair
Cruise control
INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section

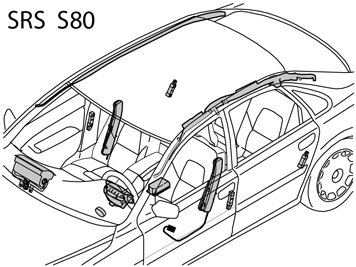

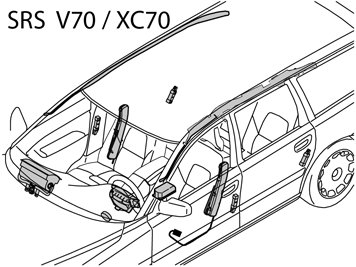

Cars equipped with SRS/SIPS (Airbag)
Warning! Extra care must be taken when working on cars equipped with SRS/SIPS airbags. This is important to prevent:1. Personal injury2. Damage to or malfunction of the SRS/SIPS system.Work on the SRS/SIPS systems or related components must always be carried out by an authorised Volvo workshop.
Is the car equipped with SRS (supplemental restraint system)?
Cars equipped with a driver's airbag have the letters "SRS" embossed on the centre panel of the steering wheel. Cars equipped with driver's and passenger airbags are marked with "SRS" on both the steering wheel centre panel and also on the dashboard close to the airbag.
If the car has SIPS cushions, both front seats have "SIPS" stitched into the upholstery.
Cars equipped with inflatable curtains have the marking "SRS" on one of the panels along the posts on the inside of the car.
Cars equipped with SRS (supplemental restraint system) also have an "SRS" decal on the front windscreen.
Warning! The airbag inflation areas must not be obstructed. Never place any objects, such as upholstery or accessories, within these areas. The panels must be able to open in the correct manner at the right time, otherwise there is an increased risk of personal injury in the event of a collision.
Do not damage the SRS wiring!
Do not trap, chafe, pierce or damage the SRS wiring. SRS wiring has orange casing and/or is plaited.
Steering and front suspension
The contact reel in the SRS system can easily be damaged when working on the steering wheel, steering shaft or steering gear. Refer to service instructions in VIDA for information on carrying out such work. This is to prevent damage.
SRS warning lamp
If the SRS warning lamp lights after repairs have been carried out, take the car to an authorised Volvo workshop.
Control module
The supplemental restraint system module (SRS) is located on the tunnel under the centre console
Cruise control

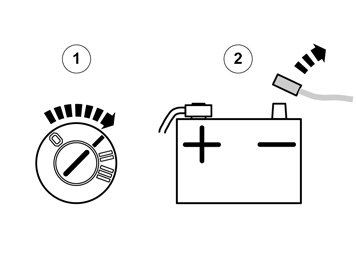

- Turn the ignition key to position I to release the steering wheel lock.
- Disconnect the battery negative lead.
Note! The SRS system remains active for a brief period after power is cut off. Thus, wait 3 minutes before starting work.
- Turn the steering wheel a quarter turn so that the holes on the reverse of the steering wheel are accessible.

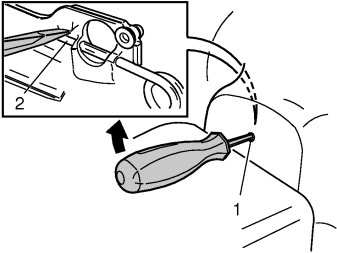

- Insert a screwdriver in the hole (1) on the reverse of the steering wheel, at right angles to the rear surface of the steering wheel. Insert the screwdriver as far as possible to determine the position of the end of the spring clip (2).
- Position the end of the screwdriver on the top of the spring clip as illustrated
- Pry the screwdriver upwards towards the upper edge of the hole (1) so that the end of the screwdriver presses the spring clip down (2) until one side of the steering wheel module springs out and releases from the mounting.
- Turn the steering wheel a half turn in the opposite direction. Carry out the same operation on the other side
- Turn the steering wheel to a neutral position.
- Fold the steering wheel module out.
- Remove the two connectors (1) for the ignition cables for the airbag. First press in the catches on the sides. Then pull the connectors straight out.
Note! The connectors are tightly secured. However, tools must not be used when removing.
- Place the steering wheel module to one side.
Warning! Position the steering wheel module with the front upwards in a secure position while carrying out the work.

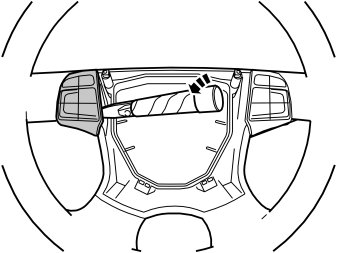

- Remove the left keypad/keypad dummy from the steering wheel by carefully prying it off using a plastic weatherstrip tool. Twist the weatherstrip tool to pry it out. The keypad/keypad dummy is firmly held in place by three lugs in the steering wheel, so some force is required to remove it.

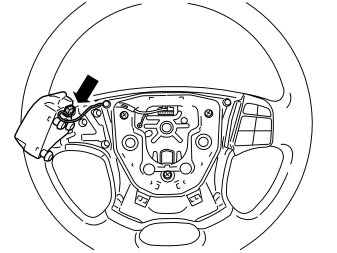

- Disconnect the connector and place it to one side. The connector will not be reused.

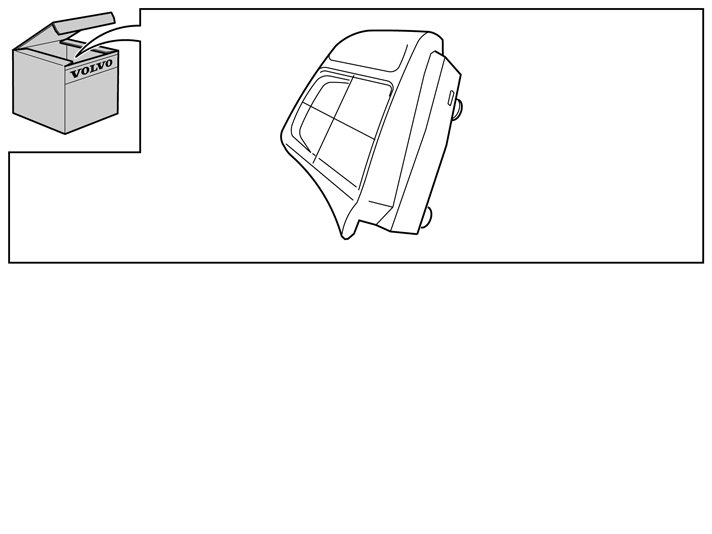

- Take the new keypad from the kit. Plug in the connector and press the keypad into the steering wheel.
- Check that the two springs (1) are in position.
- Check that the ignition cables are correctly positioned in the holder (2).
- Position the steering wheel module and press the two connectors to the ignition cables for the airbag.
- Insert the two pins on the reverse of the steering wheel module in the two springs. Ensure that the ignition cables are not trapped
- Press the steering wheel module firmly into its mountings. Two clearly audible clicks should be heard.
Installing the negative lead after working with SRS components
Warning! Make sure that no one is in the vehicle when this is done.
- Install the negative cable according to VIDA:
- Repair
- Clean, check and adjust
- 3 Electrical system
- 31 Battery and installation components
- 311 Battery
- Battery
- Battery, disconnection
- Download the software (application) for the accessory's function following the service information in VIDA.
See VIDA or the accessories catalogue for software part number.
