Mudguard, Replacing

Mudflaps
























Mudflaps

Note! Carry out the procedures on both sides of the vehicle.

Mudflaps, front

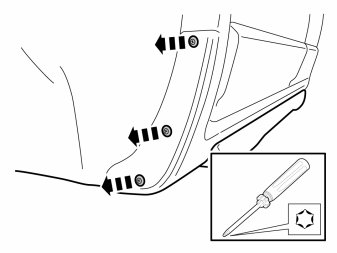

- Remove the three screws.






Install:
- the mudflap

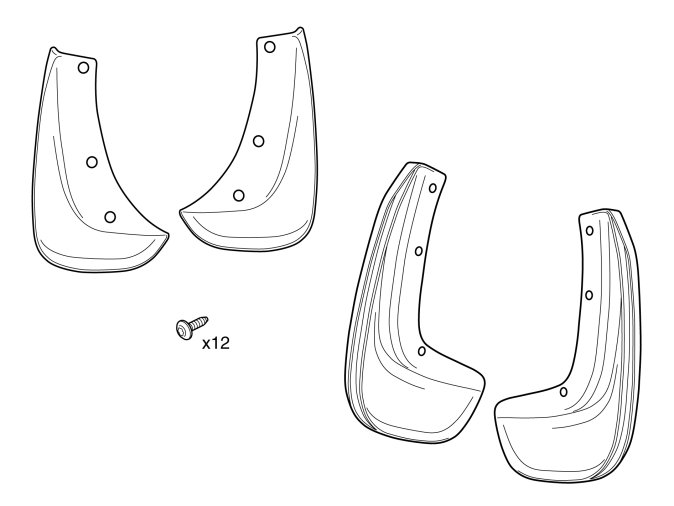

- three new screws from the kit.
- Tighten.

Mudflaps, rear

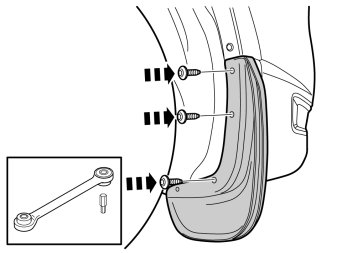

- Remove the three screws.

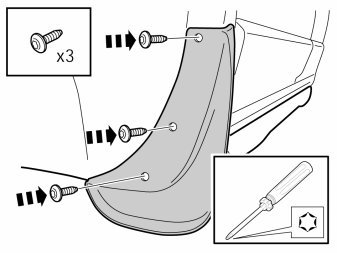

Install:
- the mudflap
- three new screws from the kit.
- Tighten.
