Electric Motor, Backrest Rake

Electric motor, backrest rake

Operation number: 85231-2

Removal

Note! Removal steps in this procedure may contain installation details.

Remove back cushion front seat

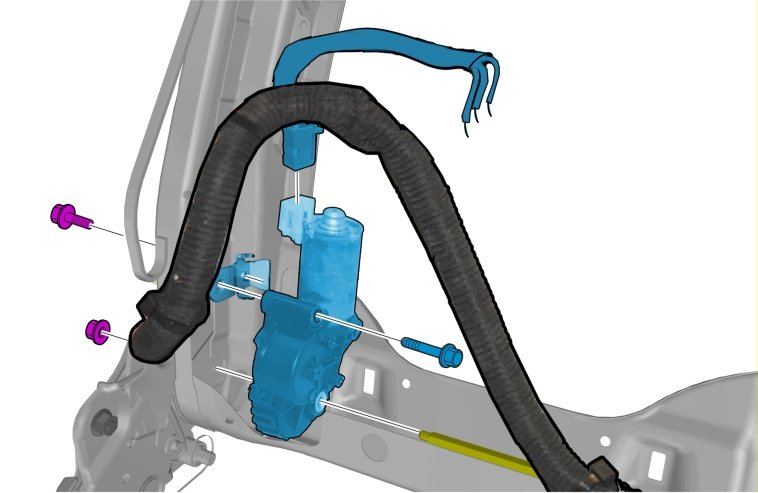

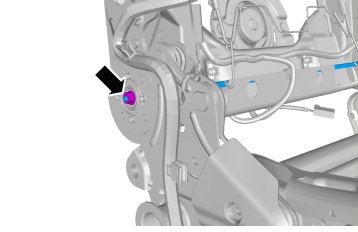

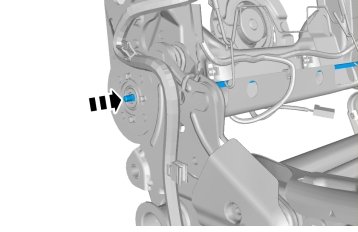

Torque: M6, 10 Nm

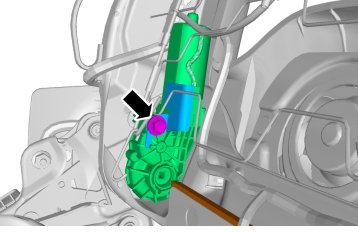

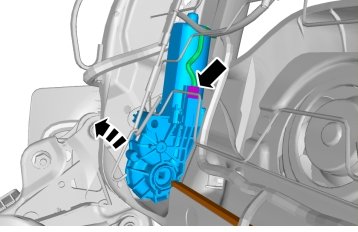

Perform connector electric motor backrest angle Refer to: Connector electric motor backrest angle Procedures

Installation

To install, reverse the removal procedure.
