Upholstery Outer Head Restraint Rear

Upholstery outer head restraint rear

Operation number: 268212-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

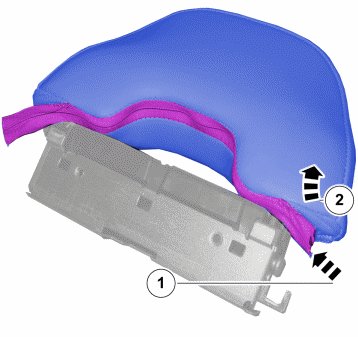

Remove the upholstery.

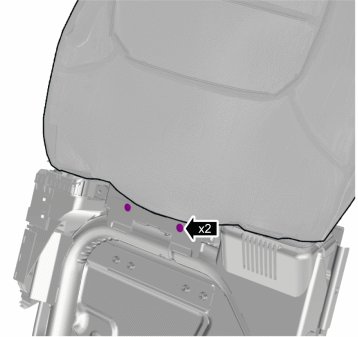

Torque: M6, 10 Nm

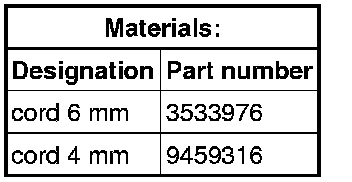

Use: cord 6 mm, 3533976

alternatively
Use: cord 4 mm, 9459316

Installation

To install, reverse the removal procedure.
