Padded Upholstery, Integrated Child Seat, Centre Seat

Padded upholstery, integrated child seat, centre seat










INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section






Padded upholstery, integrated child seat, centre seat

Note! The foam pads must be removed for washing. See washing instructions on the upholstery.

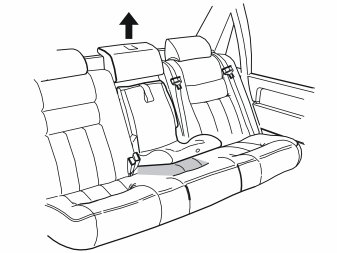

- Pull up the centre head restraint.
- Fold the child seat forward halfway and undo the catch.

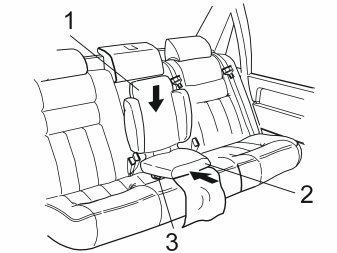

- First thread the padded upholstery over the backrest (1) and then over the seat cushion (2).
- Pull the elastic strap (3) down over the seat cushion.
- Fold up the child seat fully.

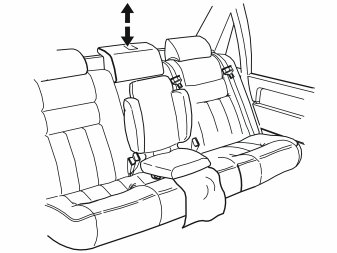

- Adjust the head restraint so that it provides optimum protection for the child's head.
