Luggage / Roof Rack: Service and Repair

Load carriers

Operation number: 89160-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the headlining. Refer to: Headlining with sun roof Service and Repair

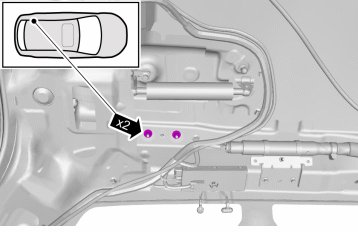

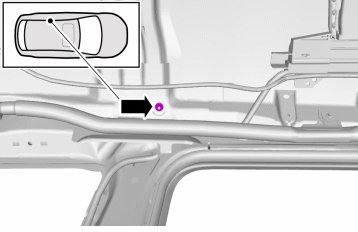

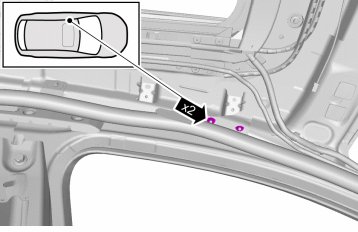

Torque: M6, 10 Nm

Note! This step requires the aid of another technician.

Installation

To install, reverse the removal procedure
