Heated Rear Seat Module

Heated Rear Seat Module

Operation number: 85335

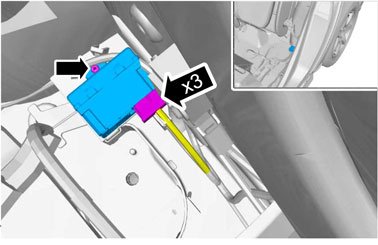

Removal

Remove the following items:
- Seat cushion, rear seat Refer to: Seat cushion, rear seat Seat Cushion, Rear Seat
- side pad Refer to: Side pad Side Pad





Installation

To install, reverse the removal procedure.

Identify according to: DIAGNOSTICS/VEHICLE COMMUNICATION/Advanced/CCM/Identifying components on LIN-net belonging to Climate control module (CCM)
