Inner Rear View Mirror

Inner rear view mirror

Operation number: 88210-2

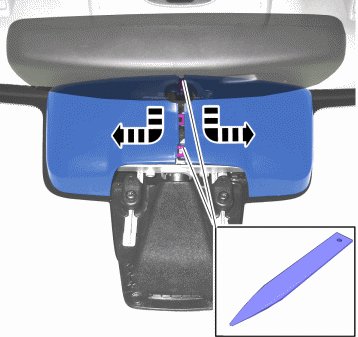

Removal









Caution! Take extra care when handling the component.

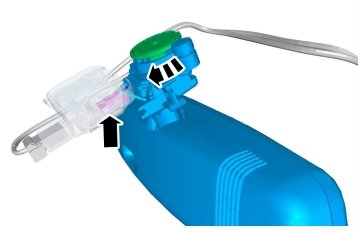

Vehicles with Proximity Warning Camera





Caution! Take extra care when handling the component.





Caution! Take extra care when handling the component.

All vehicles





Caution! Only turn at the base of the mirror.

Installation

To install, reverse the removal procedure.

Vehicles with In-Vehicle Humidity Sensor

Identify according to: DIAGNOSTICS/VEHICLE COMMUNICATION/Advanced/CCM/Identifying components on LIN-net belonging to Climate control module (CCM)

Vehicles with Electronic Compass

Perform compass calibration Refer to: Compass Calibration Service and Repair

All vehicles
