Mirrors, Auto Dimming With Compass

Mirrors, auto dimming with compass



























INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section






Mirrors, auto dimming with compass

Note! Some steps in these Installation instructions are presented with illustration only.





- Turn the ignition key to position 0.

Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

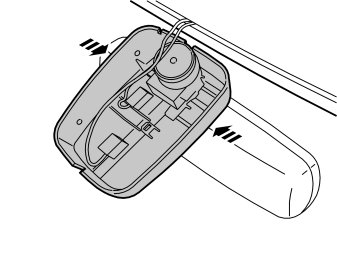

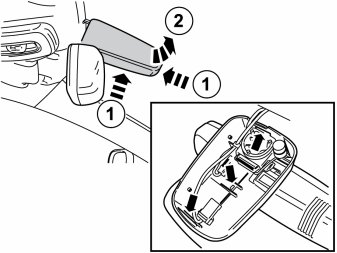

- Press the front edge and the underside of the cover, then carefully pull both sides loose from each other.

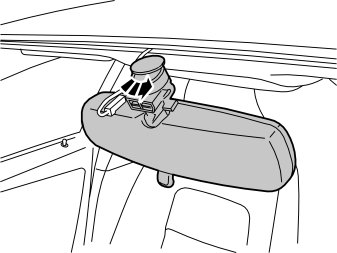

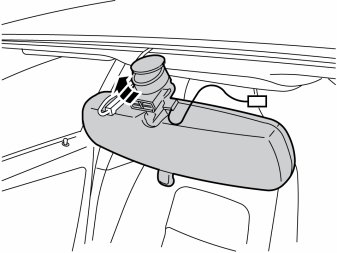

- Remove the rearview mirror from the windscreen by turning it anticlockwise until it releases from the mounting.

Note! Grip the mounting (not the mirror), and turn.

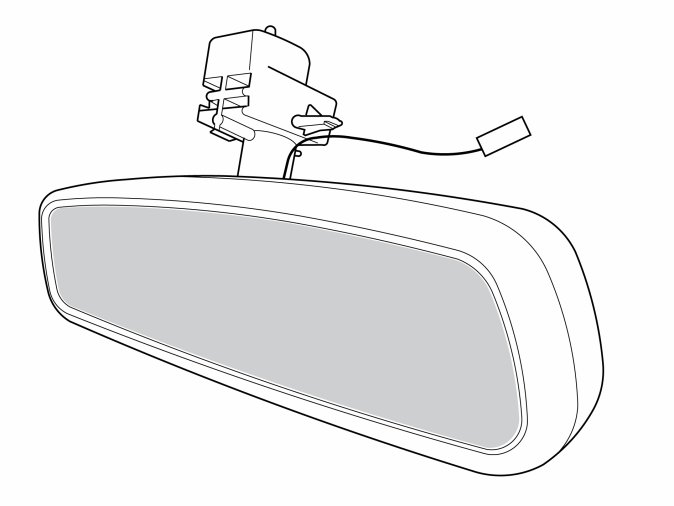

Place the mirror to one side, there is a new one in the kit.


















- Download the software for the accessory's function following the service information in VIDA.
- Calibrate the compass according to the car's instruction book.
