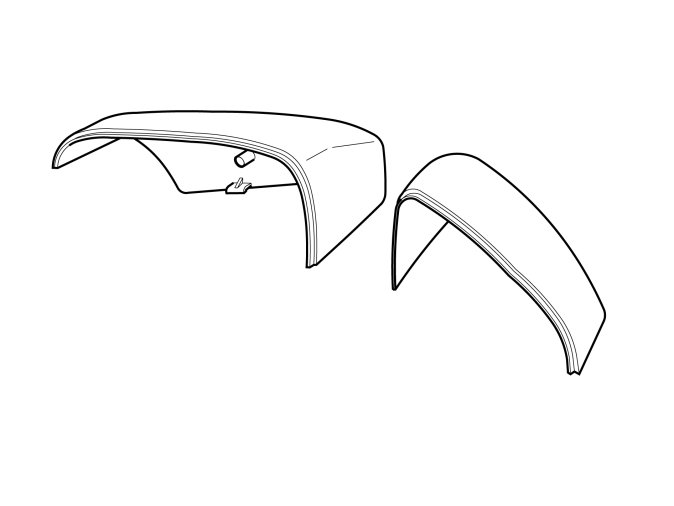

Mirror, Cover

Mirror, cover























INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section

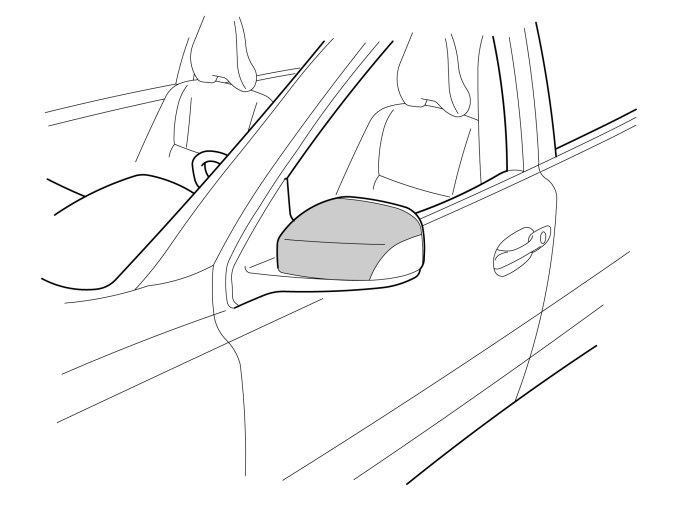

Mirror, cover

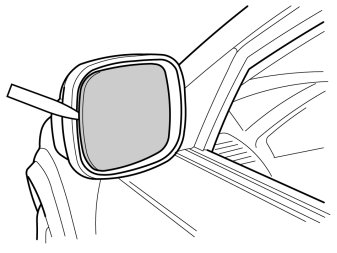

- Carefully pry off the mirror glass.

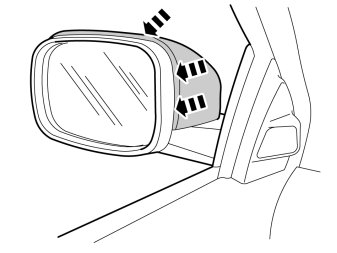

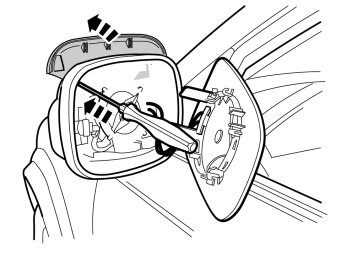

- Press out the mirror's cover using a small screwdriver.

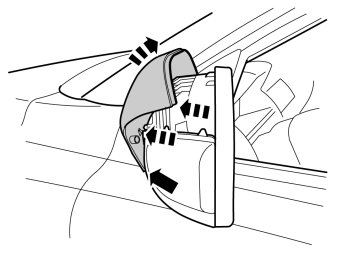

- Remove the cover. New cover is included in the kit.





- Make sure that the damper blades end up in their grooves.

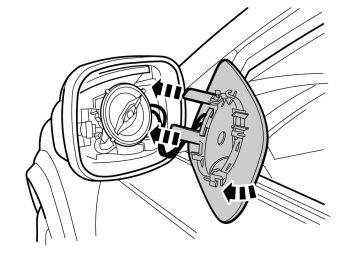

- Carefully press the mirror glass into place.


A, B, and C

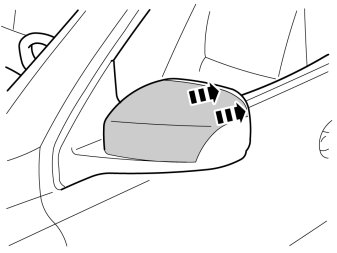

- Press the new cover on the mirror. Press all the way around so that all catches engage.
- Repeat on the car's other side.
