Trunk / Liftgate Lock: Service and Repair

Trunk lid/tailgate lock mechanism

Operation number: 83434-2

Removal

Note! Removal steps in this procedure may contain installation details.

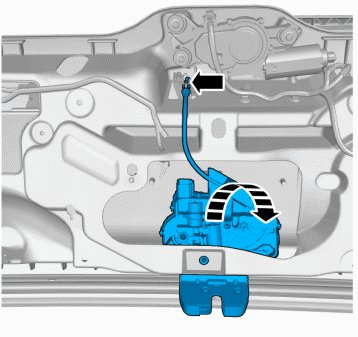

Remove the liftgate trim panel Refer to: Tailgate/trunk lid panel Service and Repair

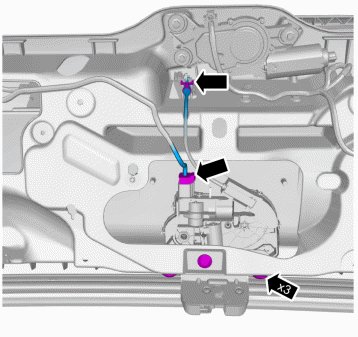

Torque: M8, 24 Nm

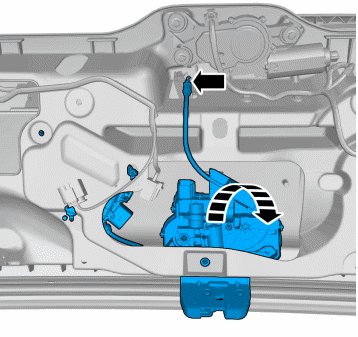

Vehicles with power liftgate

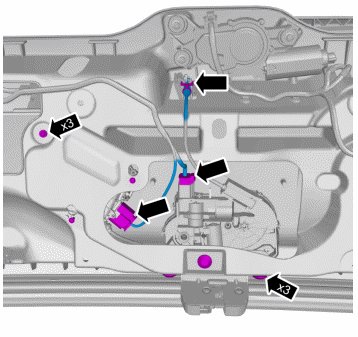

Torque: M8, 24 Nm

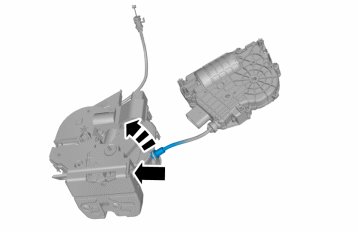

All vehicles

Installation

To install, reverse the removal procedure.
