Protective Grille

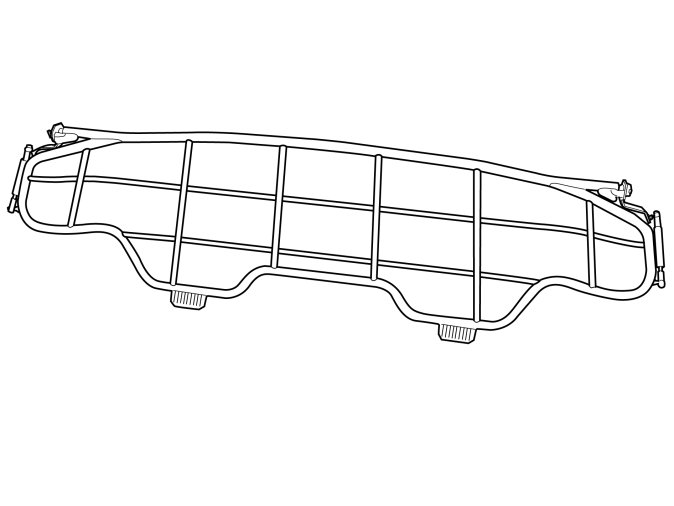

Protective grille


















INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section






Protective grille

Installation

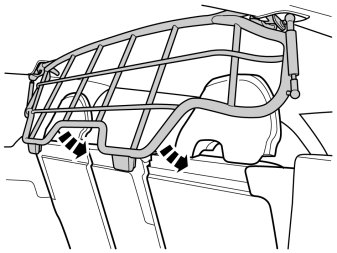

- Fold down the rear backrest.

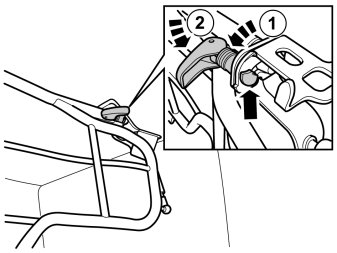

- Open the protective grille lock by turning the handle on both sides to the position illustrated.

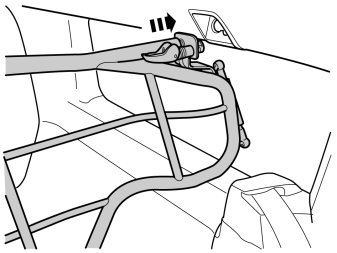

- Insert the protective grille through the right-hand door and align the left mounting of the grille in the corresponding mounting above the rear side window.

Note! Take care not to damage painted surfaces and headlining.

- Press in the protective grille's left-hand sprung mounting to the mounting above the side window. Align the right-hand mounting with the corresponding mounting above the right-hand rear side window.

Hint: It is easier to install the grille with another person.





- Lock the grille into place on both sides by turning the handle downwards and pressing it to the limit position as illustrated.

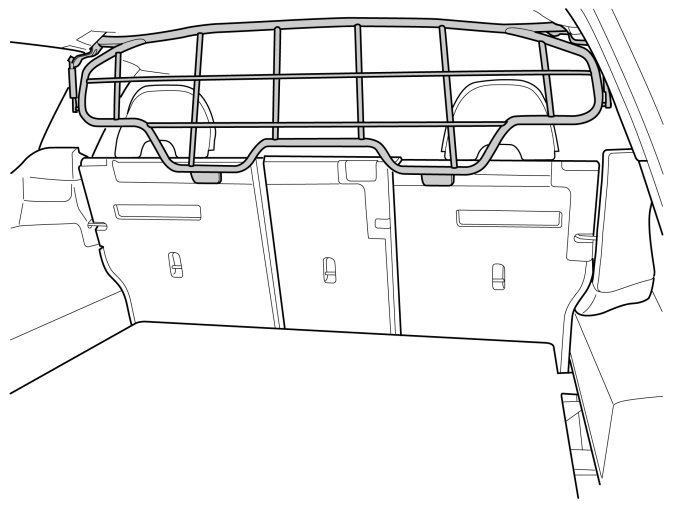

- Check that the protective grille is secure in the mountings above the side windows.

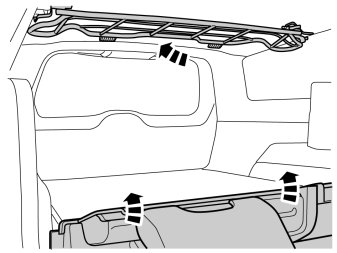

- Fold the protective grille up to the roof. Some force is required due to the gas struts.

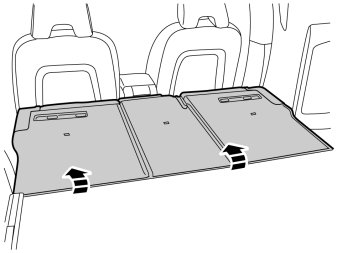

- Fold the backrests back into place.







Removal
- Fold both the rear backrests forwards when removing the protective grille to relieve the load from the gas struts and to facilitate access.
- Remove the protective grille by opening the locks and pulling the grille from the mountings.
