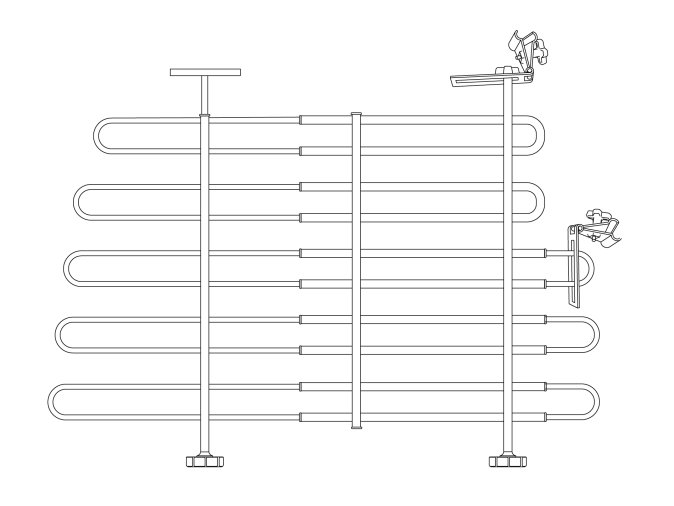

Cargo Compartment Separator, Longitudinal

Cargo compartment separator, longitudinal























INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section






Cargo compartment separator, longitudinal

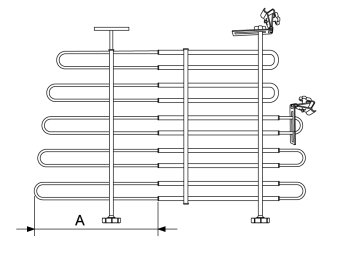

- Before installing, pull out/slide in the rear part of the cargo compartment separator so that dimension A is 430 mm (16 15/16").

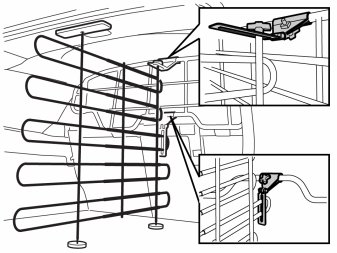

- Position the cargo compartment wall with the clamps into the car.
- Open the upper clamp and affix it loosely on the top bar of the safety grille.
- Open the lower clamp and affix it as illustrated. Tighten the clamps only exactly as much as necessary to grip the grille, do not tighten them yet.





- Adjust so that the cargo compartment wall is vertical and in the centre of the cargo compartment.
- Screw the support panel (1) so that it is against the roof panel, and is parallel with it.
- Screw down the rear support foot (2) so that the cargo compartment wall is tensioned.
- Screw down the front support foot (3) so that the cargo compartment wall stands in a straight, vertical position.





- Tighten the knobs (1-3).
- Check that the cargo compartment wall does not make contact with the tailgate when it closes.
