Upper Attachment Panel With Hooks

Upper attachment panel with hooks































INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section

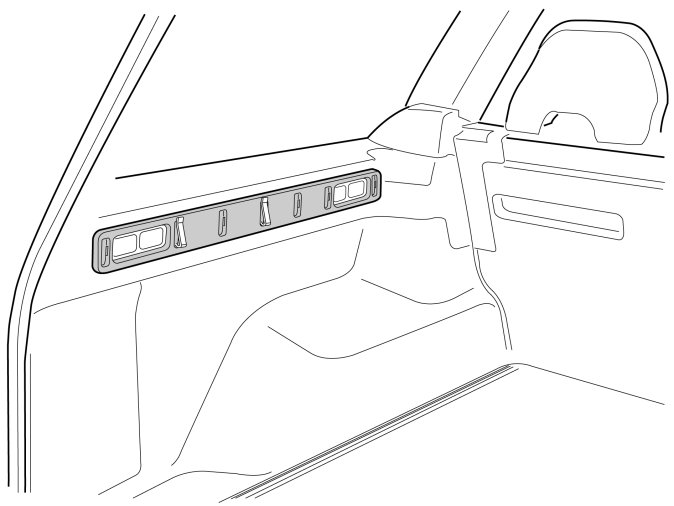

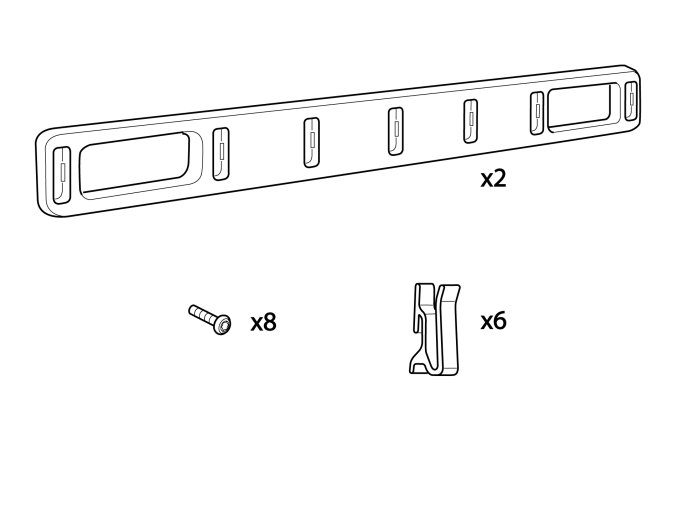

Upper attachment panel with hooks





- Take the left-hand rail (marked LH with the holes for attachment at the upper edge) and place the rear section in the hole for the rear load securing eyelet.

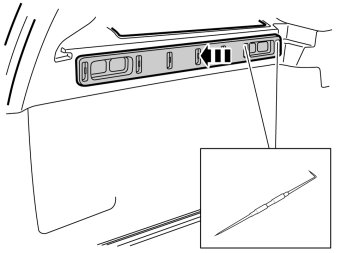

- Align it carefully and make marks for the two rear holes using a scriber.





- Align the front end of the rail carefully and make marks for the two front holes using a scriber.
- Remove the rail.






Note! Make sure not to drill through the bracket that lies directly against the side panel's rear side.

- Take a -6 mm (15/64 ") drill bit and install a drill stop of 3 mm (1/8 ").
- Drill four holes through the side panel.
- Remove any swarf.

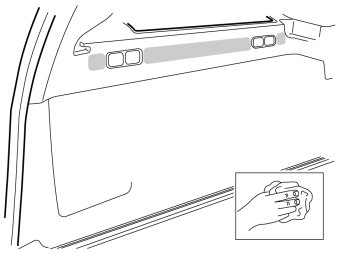

- Clean the marked surfaces using a mild, not etching, cleaning agent and wipe dry.

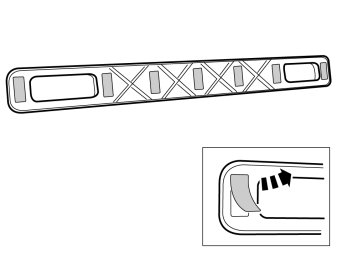

- Remove the seven protective films from the tape on the rear side of the rail.

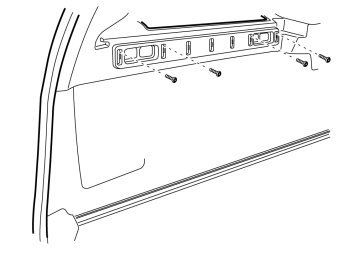

- Align the rail, without the tape adhering, so that the four screws can be screwed into the side panel. The screws are self tapping and there may be some resistance when installing.
- When the screws have engaged the threads, tighten and press the tape along the entire rail.
- Repeat all steps for the other side.

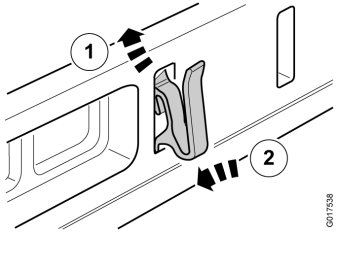

- Install the hooks by inserting them in the upper edge (1) and then downwards (2) until they lock in the rail.
