Glasses Holder, Entry Handle

Glasses holder, entry handle



























INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section






Glasses holder

Note! Some steps in these Installation instructions are presented with illustration only.





- Prise up the cover on the grab handle above the door.
- Remove the screws and carefully pull the grab handle until the retaining plate on the inside releases. Put the handle aside. The screws will be reused.

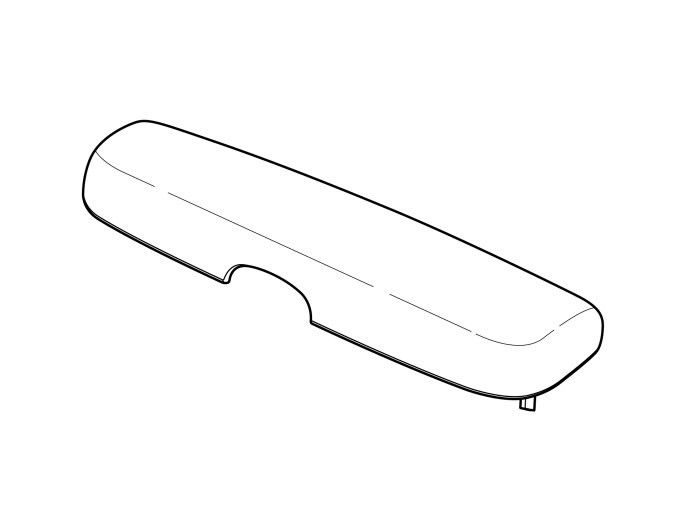

- Take the glasses holder from the kit.

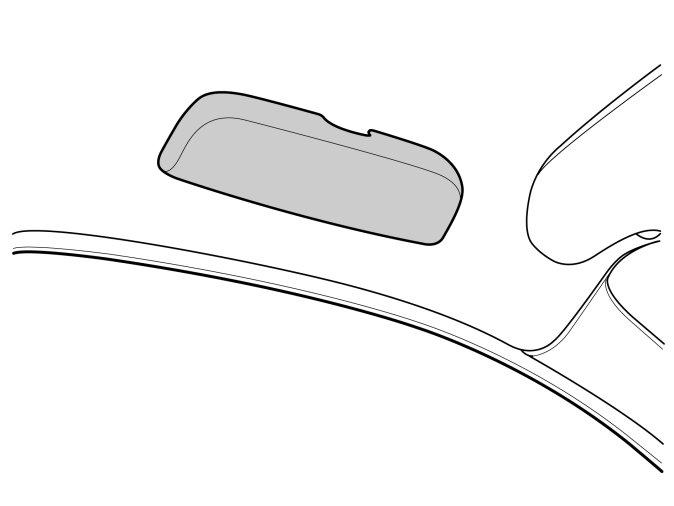

- Fit the glasses holder where the grab handle sat.

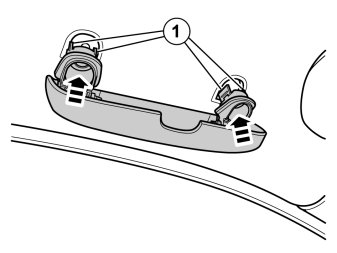

- Make sure that the four retaining plates (1) sit on each side of the nut plates where the glasses holder will be fastened. If there is not enough room for the plate, it can be broken off and discarded.
