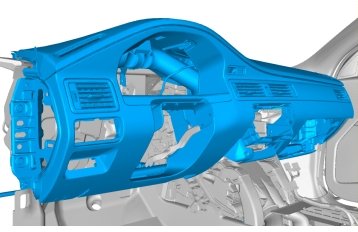

Dashboard

Dashboard

Operation number: 88108-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the contact reel for the steering wheel module. Refer to: Steering wheel control module Service and Repair.

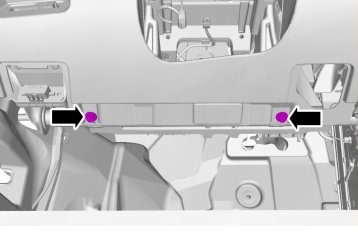

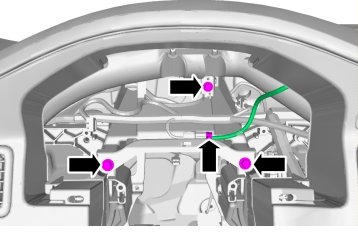

Remove the instrument cluster. Refer to: Combined instrument panel Combined Instrument Panel.





Torque: M6, 10 Nm

Remove the center console. Refer to: Floor console, TF-80SC, TF-80SC AWD Floor Console.

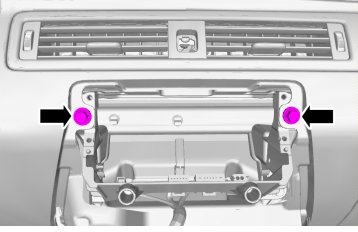

Remove the stereo control module. Refer to: General audio player module General Audio Player Module.







Remove the rotary switch for hazard flashers. Refer to: Switch, hazard warning flashers Service and Repair.

Remove the A-pillar panels. Refer to: A-pillar trim panel A-Pillar Trim Panel.

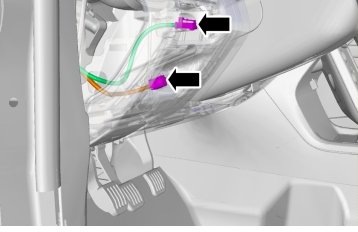

Detach the switch for the air bag on the passenger side and its cable connector.





Torque: M6, 10 Nm







Disconnect the data link connector from the dashboard. Refer to: Data link connector (OBD-II) Service and Repair.





Torque: M6, 10 Nm

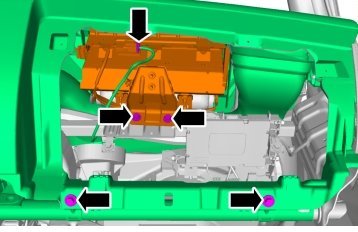

Note! This step only applies if the vehicle is equipped with speakers in the dashboard or has a navigation display.

Remove the dashboard speakers. Refer to: Loudspeaker, dashboard Loudspeaker, Dashboard.





Torque: M6, 10 Nm

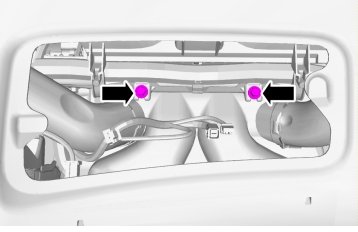

Remove the glove compartment. Refer to: Glove compartment Glove Compartment.





Torque: M6, 10 Nm

Remove the sun sensor. Refer to: Sun sensor Service and Repair.






Installation

To install, reverse the removal procedure
