Floor Console

Floor console

Operation number: 88238-2

Removal

Note! Removal steps in this procedure may contain installation details.

Battery, disconnection Refer to: Battery disconnecting and connecting Battery Disconnecting and Connecting

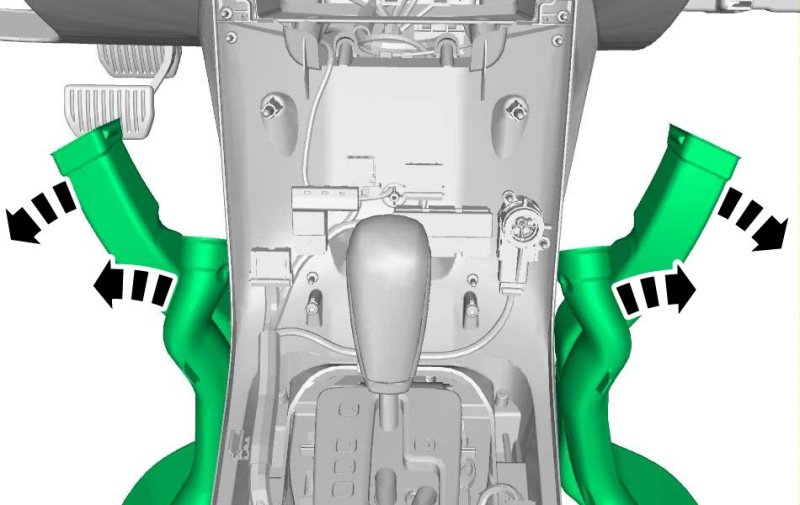

Remove center console Refer to: Center console Center Console

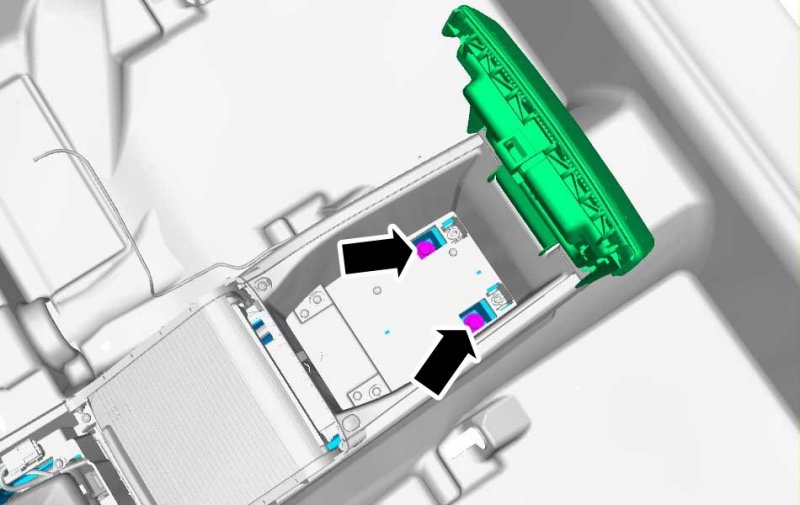

Torque: M8, 24 Nm

Caution! Note the position of the components before removal.

Installation

To install, reverse the removal procedure.
