Front Fender: Service and Repair

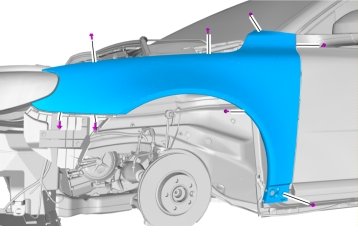

Fender

Operation number: 80201-0

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:

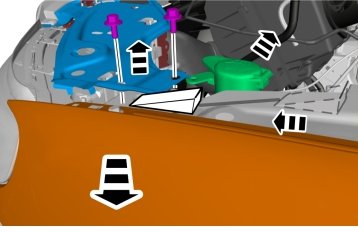

- Cover bumper front Refer to: Cover bumper front Service and Repair

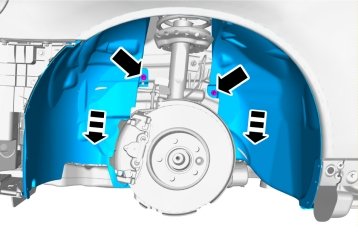

- Sill panel Refer to: Sill panel

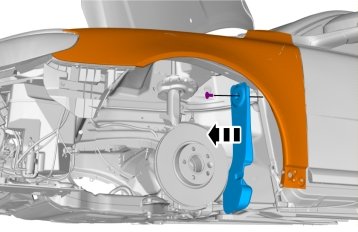

Torque: M6, 10 Nm




Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.

Follow the instructions regarding corrosion protection Refer to: Rustproofing

Install the following items:
- Cover bumper front Refer to: Cover bumper front Service and Repair
- Sill panel Refer to: Sill panel
