Trunk / Liftgate Hydraulic Cylinder: Service and Repair

Luggage Compartment Lid Lift Cylinder

Operation number: 83238-2






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- Headlining with sun roof Refer to: Headlining with sun roof Service and Repair
- Side panel loadspace Refer to: Side panel loadspace Side Panel Loadspace

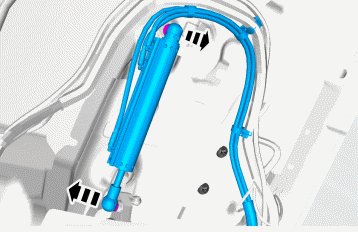

Torque: M6, 10 Nm

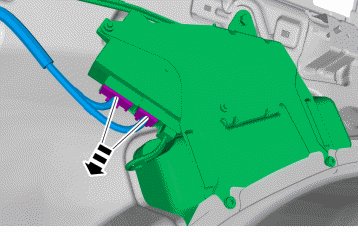

Warning! Be prepared to collect escaping fluid.

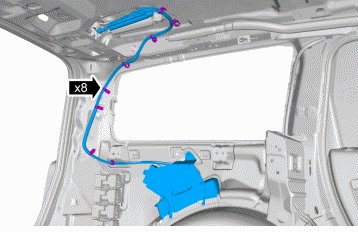

Caution! Note the position of the components before removal.

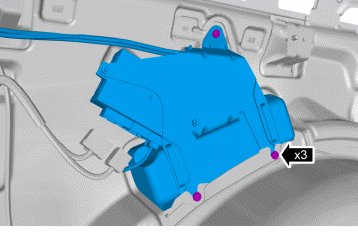

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.

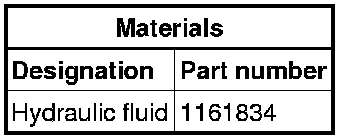

Use: Oil, 1161834
