Description and Operation
>>
Design
Design
Design
Tailgate
system

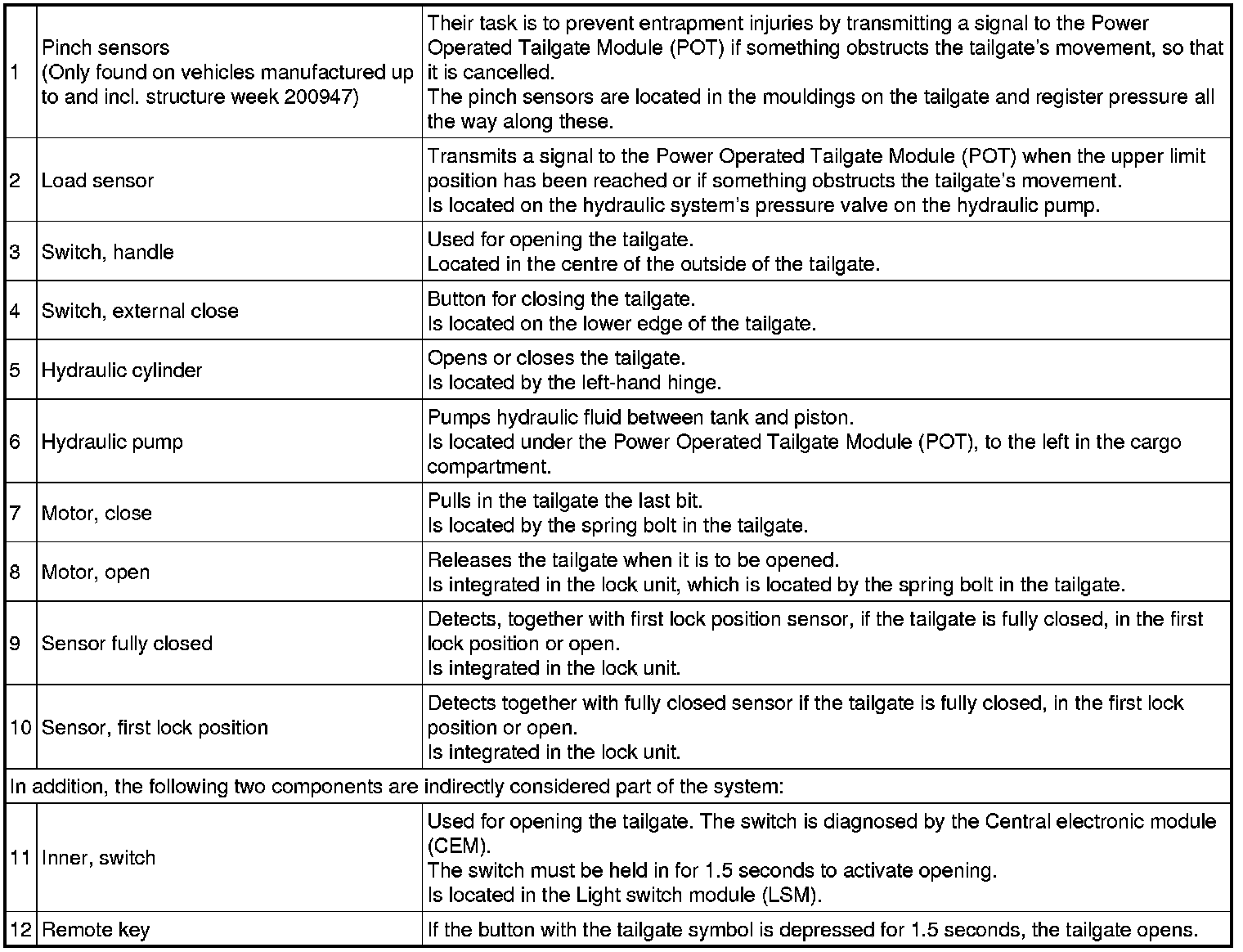

The task of the Power Operated
Tailgate
Module (POT) is to check the tailgate's electro hydraulic opening and closing mechanism. To achieve this, it is included in a system together with the following components:
