Rear Door: Service and Repair

Side door rear

Operation number: 83112-2

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- Panel rear door Refer to: Panel rear door Removal and Replacement

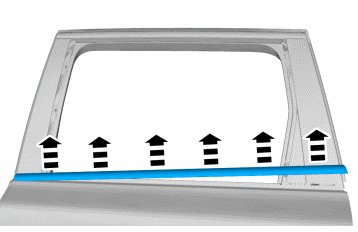

- lower trim strip, rear door Refer to: Lower trim strip, rear door
- weatherstrip, side door, rear Refer to: Seal strip side door rear Service and Repair
- Window, rear door Refer to: Window, rear door Service and Repair
- electric motor, lift mechanism, rear door Refer to: Electric motor, lift mechanism, rear door Service and Repair
- Doorstop, door rear Refer to: Doorstop, door rear Service and Repair

Caution! Make sure that the component is not bent.

Use: Insulation mat, 282315

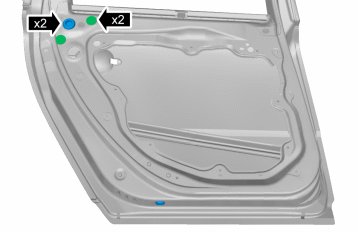

Torque: M8, 24 Nm

Installation

See information about corrosion protection Refer to: Rustproofing

To install, reverse the removal procedure.
