Rear Door Limiter: Service and Repair

Doorstop, door rear

Operation number: 83147-2

Removal

Note! Removal steps in this procedure may contain installation details.

Remove panel side door rear Refer to: Panel rear door Removal and Replacement

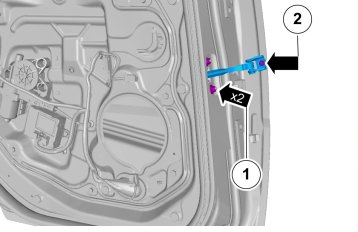

1. Torque: M6, 10 Nm

2. Torque: M8, 24 Nm

Installation

To install, reverse the removal procedure.
