Front Door Window Glass: Service and Repair

Window, front door.

Operation number: 84406-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.







Remove the door panel. Refer to: Panel front door Removal and Replacement.

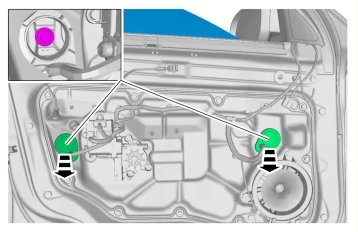

Note! Do not loosen the bolts more than 2 turns.

Torque: Window to power window mechanism (front side door), 8 Nm






Installation

To install, reverse the removal procedure.
