Front Door Latch: Service and Repair

Door latch, front door

Operation number: 83414-2

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- Window, front door. Refer to: Window, front door. Service and Repair
- Handle outer door front Refer to: Handle outer door front Service and Repair

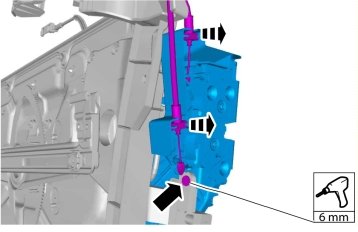

1. Torque: M6, 10 Nm

2. Torque: Door latch to door, 8 Nm

























Installation

To install, reverse the removal procedure.
