Front Bumper Cover / Fascia: Service and Repair

Cover bumper front

Operation number: 86103-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

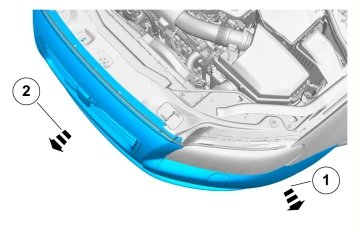

Removal

Note! Removal steps in this procedure may contain installation details.



















Note! This step requires the aid of another technician.






Note! Be prepared to collect escaping fluids.







Remove the radiator grille. Refer to: Radiator Grille Removal and Replacement

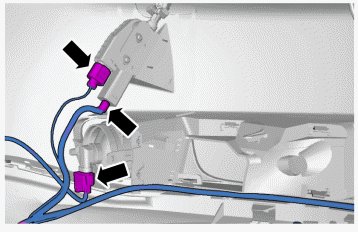

Remove the following items:

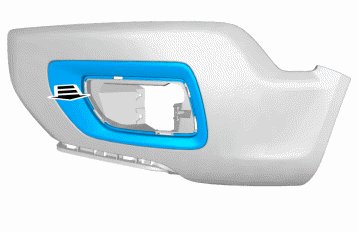

- fog lights. Refer to: Front fog lights Procedures
- high-pressure washers. Refer to: Headlamp washer jet Service and Repair

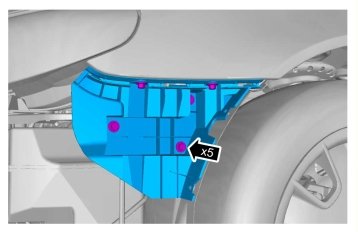

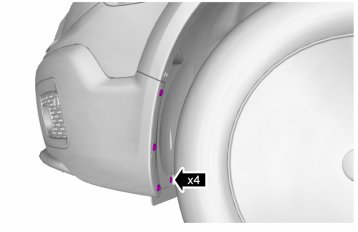

- fender widener. Refer to: Front fender widener





Torque: Bracket to front fender, 6 Nm

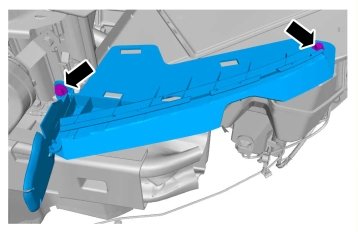

Remove the headlamp. Refer to: Headlamps Headlamps





Torque: Bracket to front end, 6 Nm











Installation

To install, reverse the removal procedure
