Audio System - 6 CD Changer Installation Information
Retailer Technical Journal 21986Add 6-cd changer. Results in "Error 131 - Incompatible hardware"
Date 10-29-2009
Reference:
Retailer Technical Journal 20233
Introduction of HD (Hybrid Digital) Radio and
USB / ipod support: IAM P/N matrix
Accessory Blue info on VRC2
Subject:
6 CD changer Dated Oct 15, 2009.
Parts tab/accessories/Product Information/Information updates
Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.

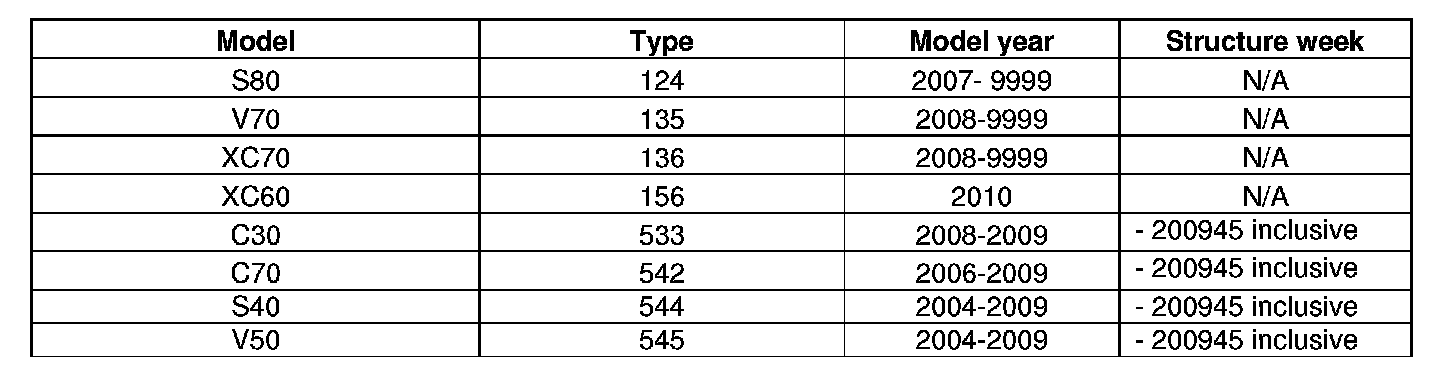

AFFECTED VEHICLES:
DESCRIPTION:
When trying to add a 6-cd changer to the cars above, the SW (SoftWare) download may result in an error in VIDA, Error 131 - Incompatible Hardware.
PRODUCT MODIFICATION: Will be corrected in VIDA 2009D
SERVICE:
Before loading the "ADD 6-cd changer" SW, you need to perform these actions:
- Ensure that the IAM with 6-cd changer is applicable to the vehicle you are working on. 6-cd IAMs are not valid for P1X cars equipped with HD radio and USB/iPod support.
Note structure week limitations above
- Install the 6-cd changer into the car
- Perform "ITP off" SW, to switch off the Infotainment Theft Protection
S40/V50/C30/C70: download SW P/N 30667249 "ITP off"
S80/V70/XC70: download SW P/N 30786292 "ITP off"
When the "ITP off SW is confirmed, then download the ADD 6-cd changer" SW, using VIDA
WARRANTY CLAIM INFORMATION
