Part 3

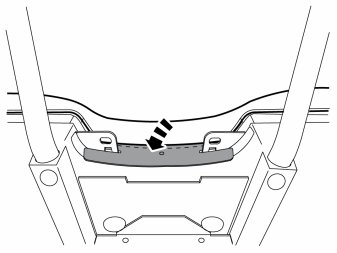

- Pull the two corners of the upholstery over.





- Hook the upholstery onto the two cutouts.

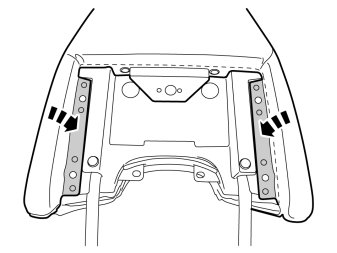

- Fold in the upholstery's two reinforcements.





- Fold up the upholstery's reinforcement.

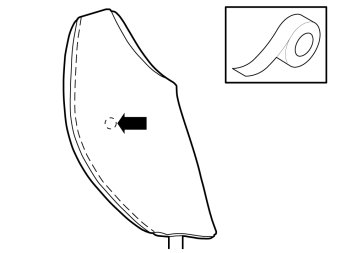

- Locate the hole under the upholstery on the side of the headrest.

Note! The inward facing side in the car.

- Make a mark for making a hole using a piece of tape.

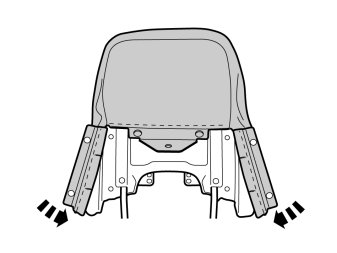

- Fold back the upholstery's reinforcement.





- Install the 5 clips.





- Fold in the upholstery's mounting.

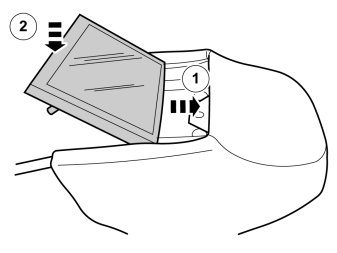

- Take the display from the kit.
- Install on the headrest.

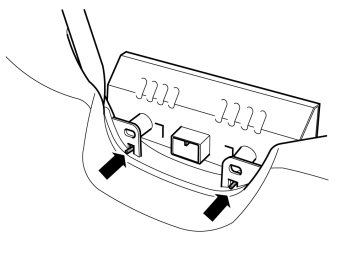

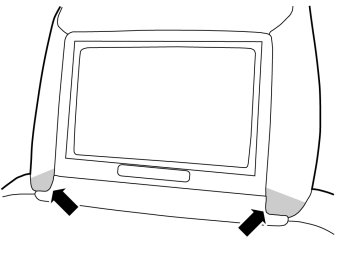

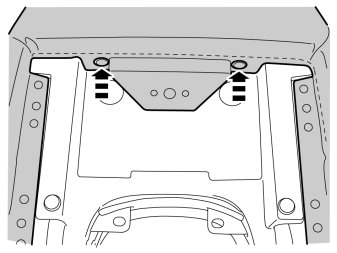

- Align the display in the headrest's two cutouts.

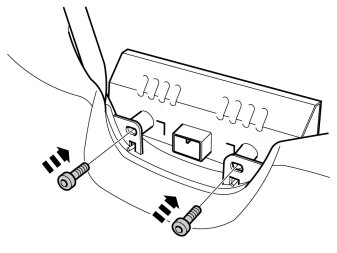

- Install the two screws.

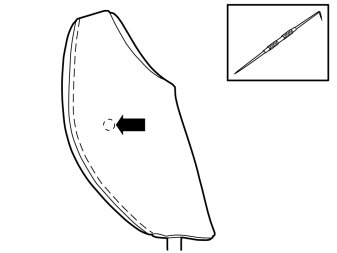

- Locate the hole under the upholstery on the headrest side, marked with tape.
- Make a hole in the upholstery using a scriber or an awl.

Note! The inward facing side in the car.

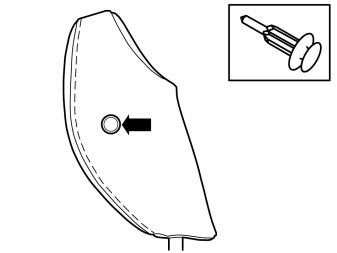

- Take the coat hook from the kit.
- Press into the hole.
- Tap it in lightly using a plastic hammer so that it secures properly.

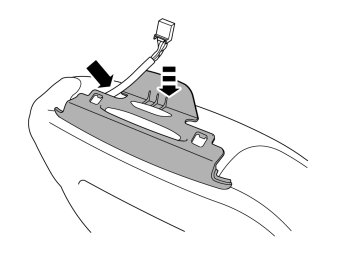

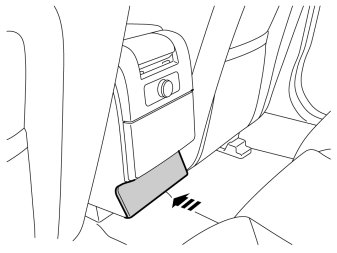

- Position the panel on the seat.
- Position the cable harness in the panel's cutout.

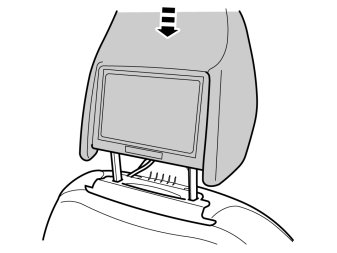

- Install the headrest on the seat.
- Only slide it down so that the distance between the seat and lower edge of the headrest is approximately 50mm.





- Connect the connector and push the headrest down to the locked position.
- Check that the head restraint has locked into place by pulling it upwards.





- Check that the head restraint upholstery is in the correct position against the panel.






Applies to cars without electrically heated seats

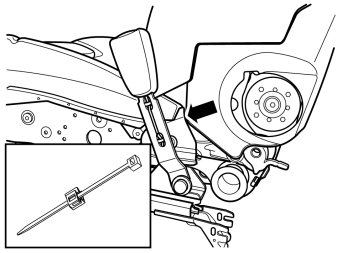

- Take a clip with cable tie from the kit and install it on the cover's edge on the left-hand side of the right-hand seat.






Applies to cars without electrically heated seats

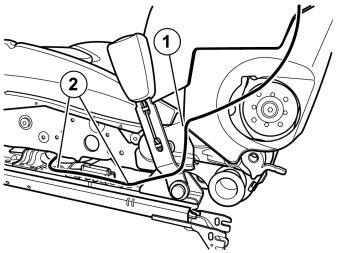

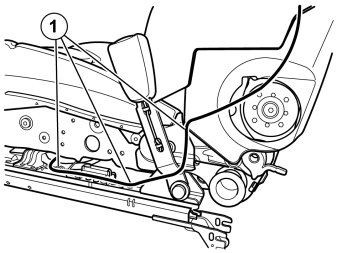

- Take the cable harness from the headrest and pull forward, in underneath the seat. Follow the cable harness for the seat belt buckle.

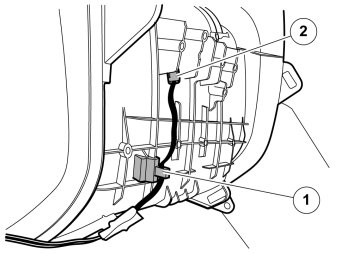

- Tighten the cable tie (1).
- Secure the cable using two cable ties (2).






Applies to cars with electrically heated seats
- Take the cable harness from the headrest and pull forward, in underneath the seat. Follow the cable harness for the heating element.
- Secure the cable using three cable ties (1).

Applies to all models




- Reinstall the tunnel console. Check that the gear selector cable is on the correct side.

Warning! Do not damage the SRS connectors when installing the tunnel console.

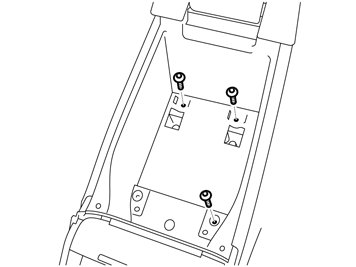

- Remove the three screws at the bottom of the storage compartment.
- Raise the front edge of the tunnel console and connect the connectors to the SRS control module.

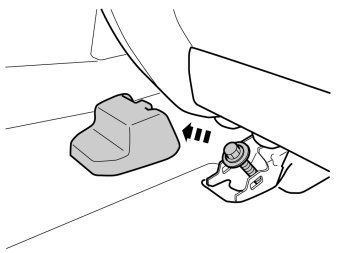

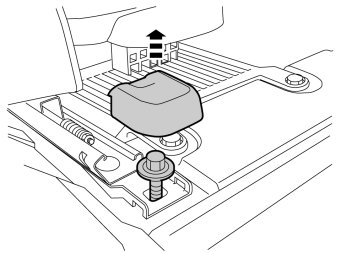

- Remove the front seat side pieces and the screws on the right-hand front seat.





- Remove the rear seat side pieces and the screws. Tilt the seat back.


Applies when Digital TV receiver is to be installed

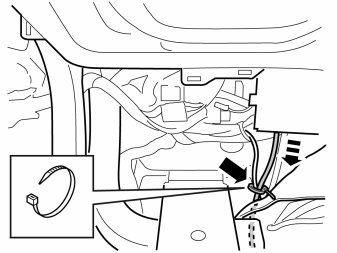

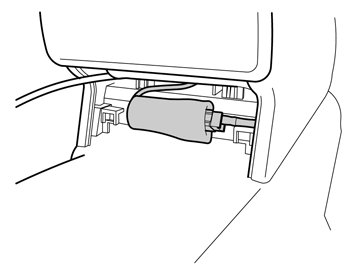

- Route the cable for the TV receiver from the right side of the tunnel console and on under the front edge of the floor mat. Clamp the existing cable harness.


Applies when Digital TV receiver is to be installed

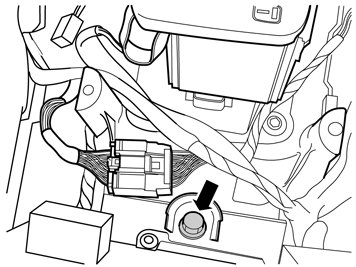

- Place the connector at the hole in the member.

Applies to all models

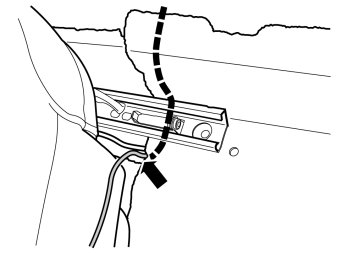

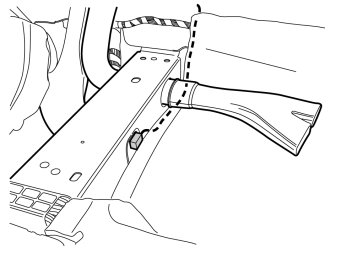

- Route the cable harness to the screen under the floor mat's joint at the seat rail.
- Route the cable harness at the existing cable harness.






Applies to the right-hand front seat

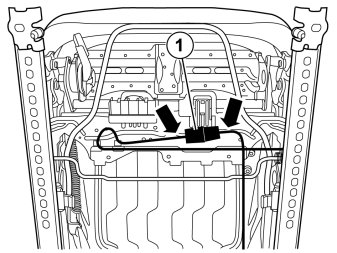

- Route the cable harness in a loop under the seat. Secure it using three cable ties in the existing cable harness.






Applies to the right-hand front seat

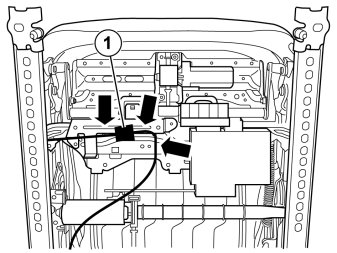

- Connect the cable harness from the floor to the connector (1).
- Place a cable tie on each side of the connectors and tighten.
- Reinstall the seat with screws and side pieces. Torque tighten the screws to 40 Nm.
- Check that the cable harness is not trapped when the seat is slid forwards and backwards.

Applies when the right-hand seat is the passenger seat.
- Fold the backrest forward and backwards and check that the cable harness is not trapped when folding the backrest.






Applies to the left-hand front seat.
- Route the cable harness under the seat.
- Connect the cable harness from the floor to the connector (1).
- Secure it using a cable tie in the existing cable harness or in a bracket.
- Place a cable tie on each side of the connectors and tighten.
Applies when the Digital TV receiver is to be installed:
Continue with the Installation instructions: TV receiver, digital.
- Reinstall the seat with screws and side pieces. Torque tighten the screws to 40 Nm.
- Check that the cable harness is not trapped when the seat is slid forwards and backwards.

Applies when the left-hand seat is the passenger seat.
- Fold the backrest forward and backwards and check that the cable harness is not trapped when folding the backrest.


Illustration A




- Check that the gear selector is in neutral.
- Reinstall the lower section of the center console (without screws).

Illustration B




- At the same time install the cable harness clips (1) on the rear edge.
- Connect the connector (2) to the antenna, or attach it using butyl tape if it is not to be used.

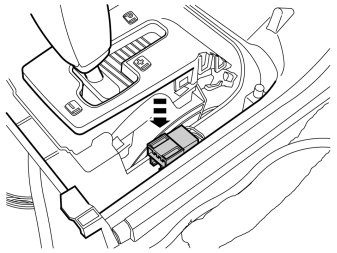

- Install the 6 pin green connector with holder on the center console.





- Slide the entire tunnel console forward.
- Reinstall the M8 screw (2).

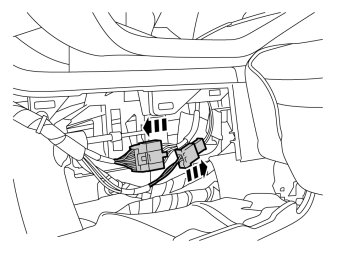

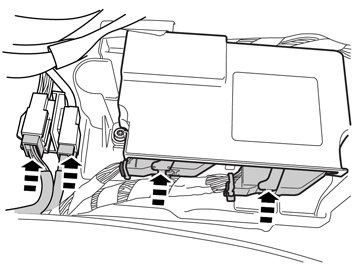

- Connect the two grey connectors and the two connectors on the SRS control module.

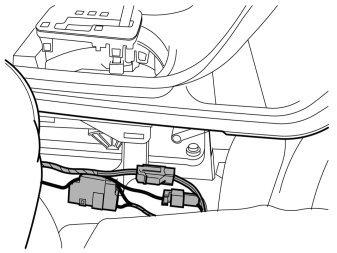

- Connect and hook the three connectors on the right-hand side.

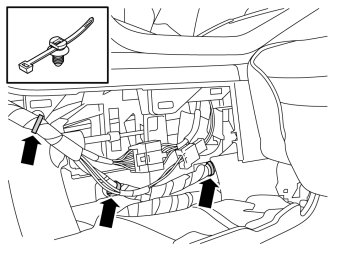

- Take three cable ties with clips from the kit and install the cable harness.





- Connect and hook the two connectors on the left-hand side of the lever carrier.





- Secure the DVD unit. Check that the hooks engage.






Applies to cars with a USB socket

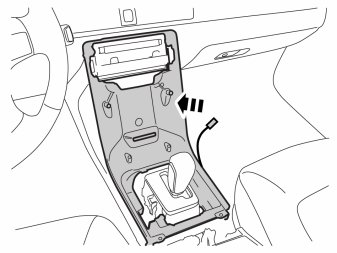

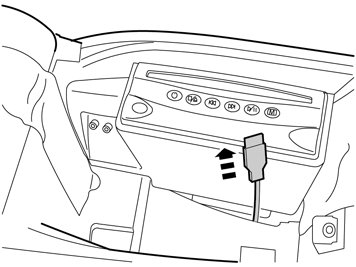

- Pull the USB cable up through the bottom of the storage compartment.






Applies to cars with a USB socket
- Position the connector against the frame.






Applies to cars with a USB socket

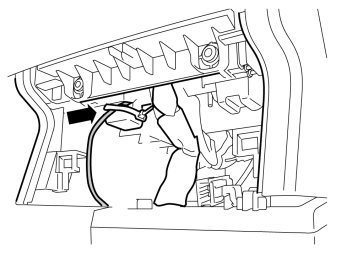

- Secure the cable at the left mounting on the tunnel console using a cable tie.

Applies to all models




- Reinstall the panel under the ashtray.
- Align the rear section of the tunnel console with the lower part.

Reinstall:
- 6 screws for the lower part of the center console
- 4 screws in the storage compartment
- 2 M8 screws in the storage compartment
- 2 M8 screws in the front edge of the tunnel console






Applies to cars with a USB socket

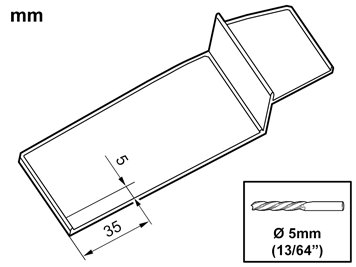

- Remove the rubber mat from the kit and drill a hole as illustrated.






Applies to cars with a USB socket

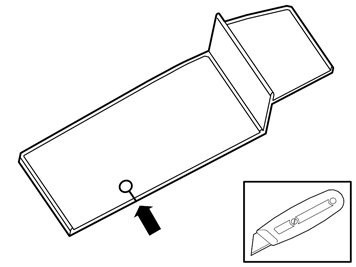

- Cut a slit in the mat.

Applies to all models

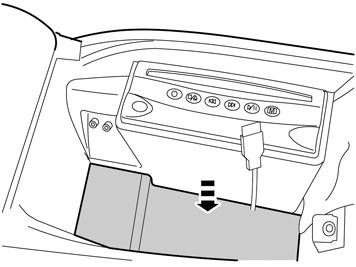

- Push the mat to the bottom of the storage compartment.






Reinstall:
- the upper part of the center console
- the panel around the display
- clips with cable harness
- the panel around the gear lever selector. At the same time connect the connectors for the Four-C system, if applicable.
- mat in the cup holder.

Applies to automatic gearboxes
- Move the gear selector to P.

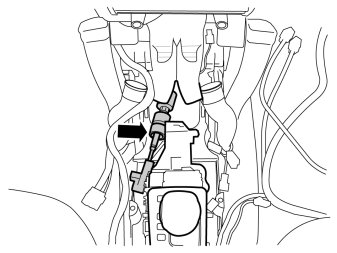

- Reinstall the gear selector cable.
- Reinstall the side panels.

Applies to manual gearboxes
- Move the gear selector to 4.
- Reinstall the gear selector cables.
- Reinstall the side panels.





- Install the batteries in the remote control and headsets.
- Region code the DVD player. Information is in VIDA under:
- Product specifications
- Design and Function
- 39 Media, communication and navigation
- 393 Equipment for entertainment
- Rear seat entertainment system
- Design

To activate the TV function
1. Aim the remote control at the screen and press DAY/NIGHT ("on/off") for approx. 5 seconds until SERVICE MENU is displayed.
2. Enter code 1971, press OK.
3. Select SET TV, press OK.
4. Select TV connected, press OK.
5. Exit.






Only applies to the USA and Canada: Installing labels
- Take the black decal from the kit.
- Clean the area (1) where the label is to be placed using isopropanol, and wipe dry.
- Pull off the protective paper from the adhesive side of the label and attach the label as illustrated. Press the label securely into place.
