Control module




The infotainment control module (ICM) has an integrated display and keypad unit.
The display shows information about the function which is active. It also displays information when selecting functions and preferences for the system. The graphic display consists of a field with 256*64 pixels.

The infotainment control module (ICM) has inputs and outputs for:
- power supply
- ground
- CAN-network (Controller Area Network)
- LIN-communication
- MOST network
When replacing the control module reprogramming is required.
The control module can be diagnosed.

Remote control navigation system

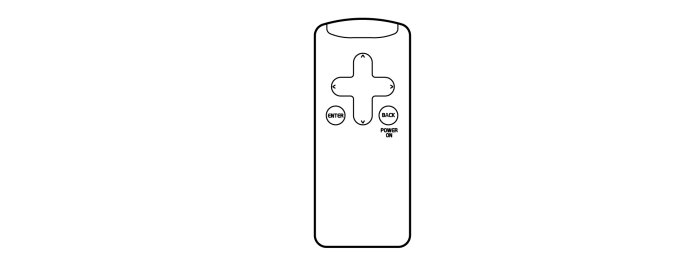

There are two remote controls for the infotainment system. The navigation system remote control can be used to control the navigation system remotely.
The IR receiver is located on the front of the infotainment control module (ICM).

Remote control infotainment




Remote control infotainment can be used to activate most functions remotely that can be controlled via the keypads on the Infotainment Control Module (ICM). Climate control module (CCM) and via the buttons on the steering wheel.
The IR receiver is located on the front of the infotainment control module (ICM).
