Removal and Replacement






Floor Console Universal Serial Bus (USB) port

Operation number: 39321-2

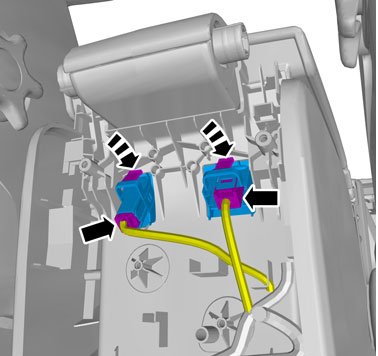

Removal

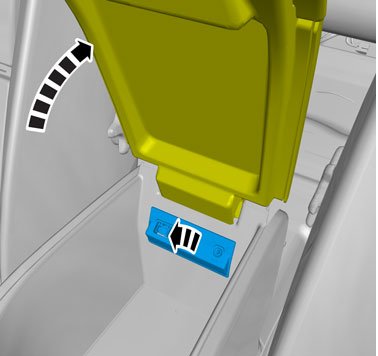

Remove cover/center armrest Refer to: Cover/armrest tunnel compartment Cover/Armrest Tunnel Compartment









Installation

To install, reverse the removal procedure.
