INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The front page gives the date of this edition and the edition it replaces

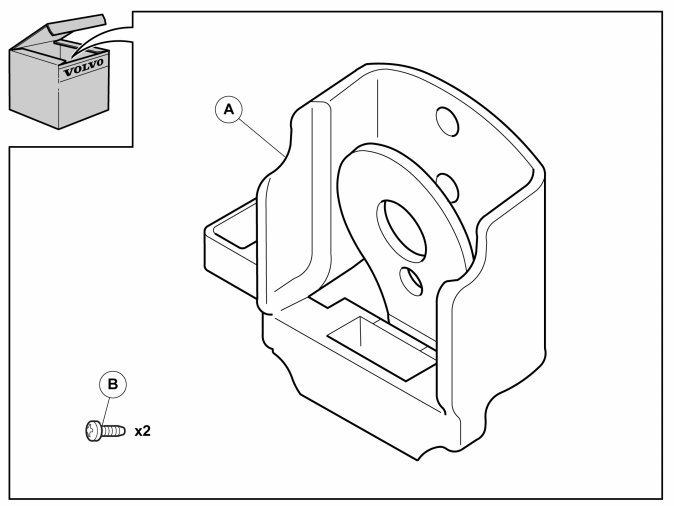

- The second page shows the tools needed for the installation and the contents of the installation kit
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section
- Cut out the text page in order to follow the illustrations and text at the same time.






USB/Ipod Music Player, Interface, cradle

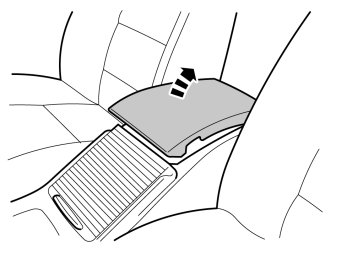

Applies to the S40, V50, C30 and C70










Positioning applies to left-hand drive cars





Applies to left-hand drive cars

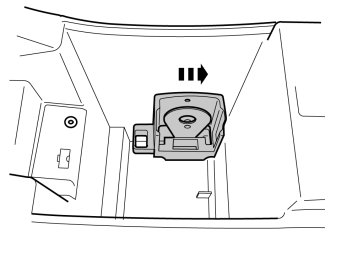

- Position the cradle against the rear end.





Applies to left-hand drive cars





Applies to right-hand drive cars





Applies to right-hand drive cars

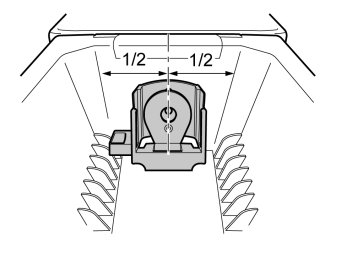

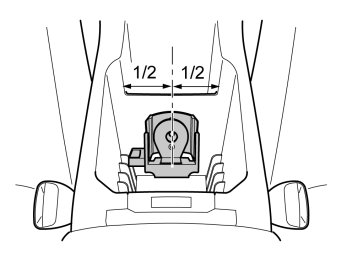

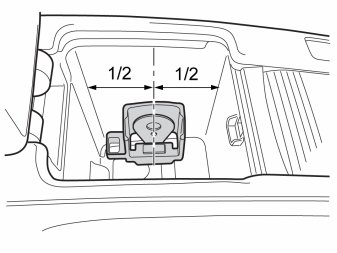

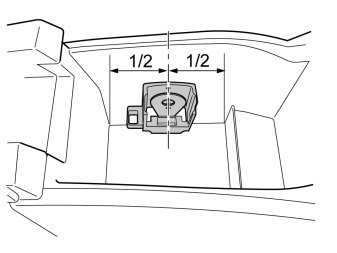

- Position the cradle in the middle of the side face.





Applies to right-hand drive cars





Applies to all models

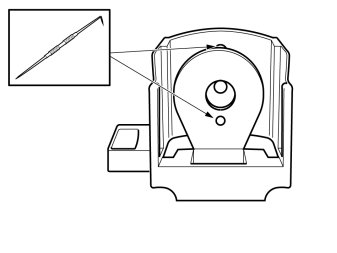

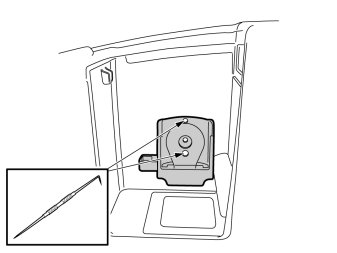

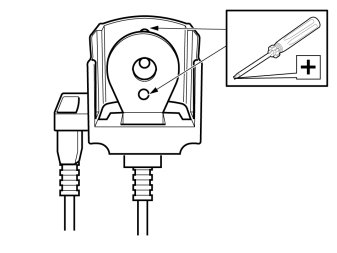

- Mark and make holes using a scriber or similar.

Caution! The hole must not be larger than 2 mm.

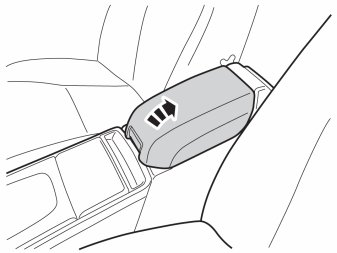

Applies to the XC90

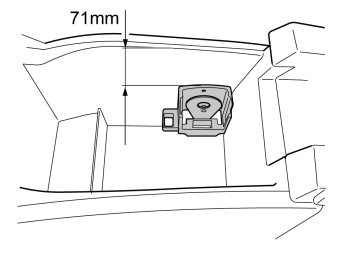

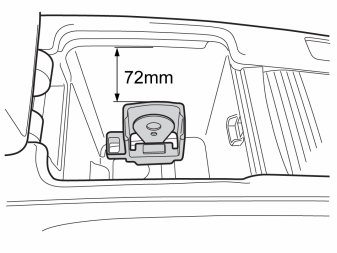

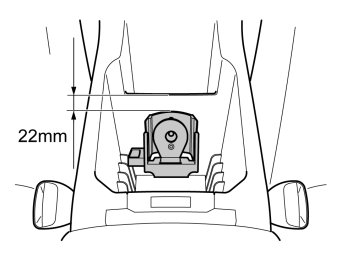

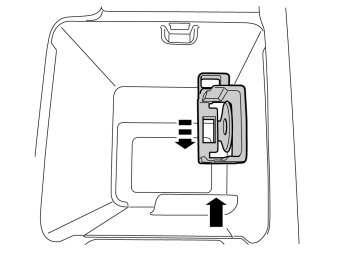

- Position the cradle in the tunnel compartment's front end.










Applies to cars with DVD player (RSE)

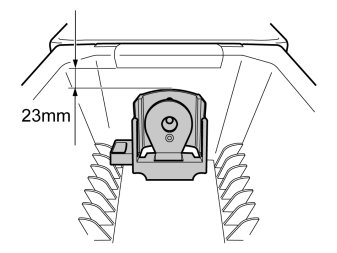

- Position the cradle on the rear end in the tunnel console.





Applies to cars with DVD player (RSE)





Applies to all models
- Mark and make holes using a scriber or similar.

Caution! The hole must not be larger than 2 mm.

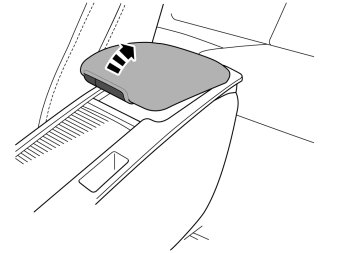

Applies to the V70, XC70 and S80










Applies to left-hand drive cars

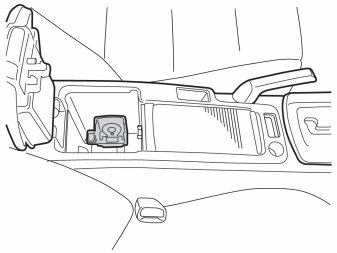

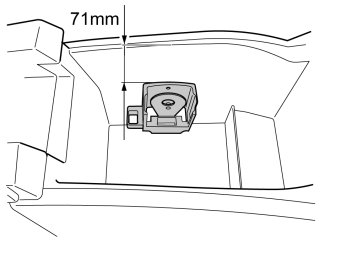

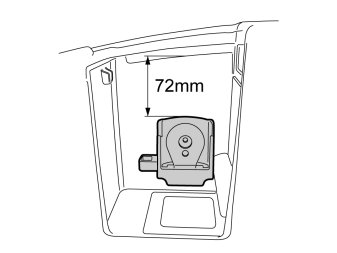

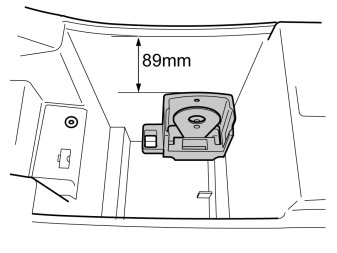

- Position the cradle on the right-hand long side against the rear end.





Applies to left-hand drive cars





Applies to right-hand drive cars and cars with DVD players (RSE)





Applies to right-hand drive cars and cars with DVD players (RSE)





Applies to all models
- Mark and make holes using a scriber or similar.

Caution! The hole must not be larger than 2 mm.

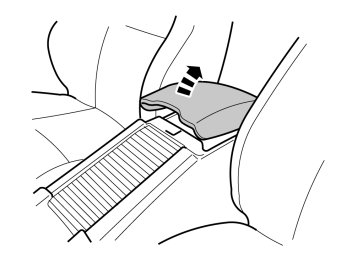

Applies to the XC60










Applies to left-hand drive cars and right-hand drive cars with carphones

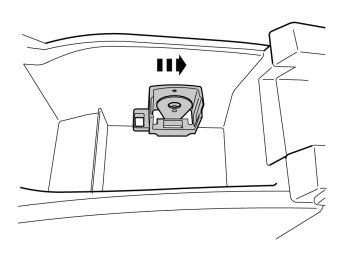

- Position the cradle on the right-hand long side against the rear end.





Applies to left-hand drive cars and right-hand drive cars with carphones





Applies to right-hand drive cars

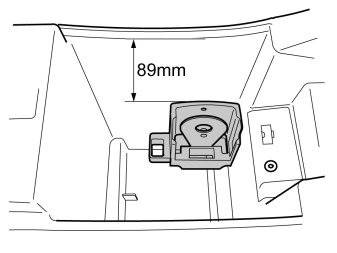

- Position the cradle on the left-hand long side against the front end.





Applies to right-hand drive cars





Applies to all models
- Mark and make holes using a scriber or similar.

Caution! The hole must not be larger than 2 mm.

Applies to all models

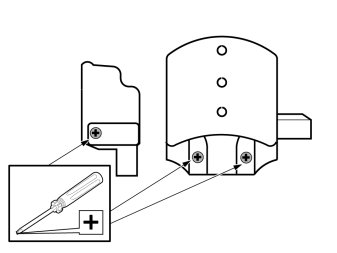

- Slacken off the screws.





- Remove the end section.

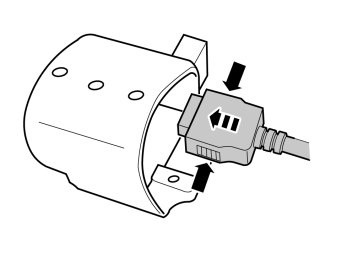

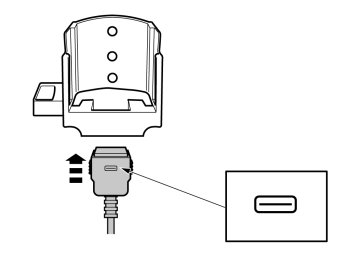

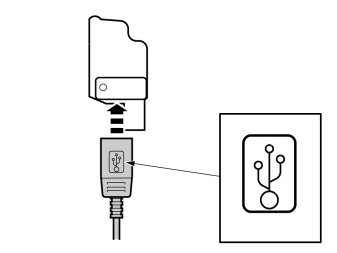

- The marking on the connector must be pointing outwards.





- Press in the catches and connect the connector.





- Install the rear section and the screws.





- Connect the connector with the marking pointing outwards.

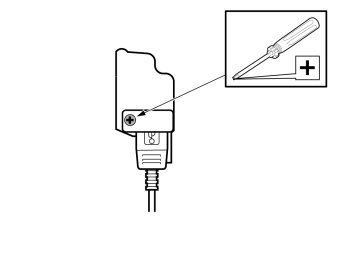

- Install the screw.

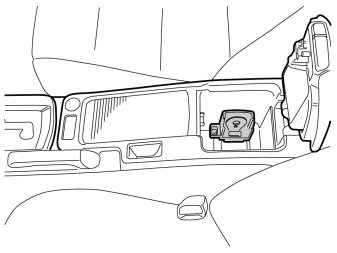

- Screw the cradle in the tunnel compartment.
- Try to feed in any excess wiring.
