Tracker, Volvo On Call

Tracker system based on Volvo on Call



























INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The front page gives the date of this edition and the edition it replaces
- The second page shows the tools needed for the installation and the contents of the installation kit
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section
- Cut out the text page in order to follow the illustrations and text at the same time.






Tracker system based on Volvo on Call

Note! The Installation instructions only apply to left-hand drive cars





- Turn the ignition switch to position 0.
- Disconnect the battery negative lead.

Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.










- Remove the bolts of the panel underneath the glovebox and remove it.





- Disconnect the lighting connector and place the panel to one side.





- Remove the two screws.


A, B, and C




- Remove the six screws.
- Pull out the glove box slightly.
- Disconnect the connector at the rear edge.
- Remove the connectors on top and disconnect them.
- Remove the glovebox.

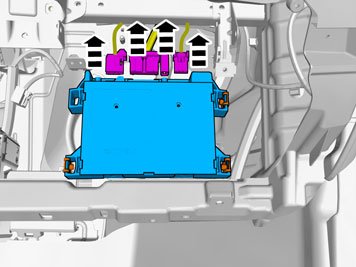

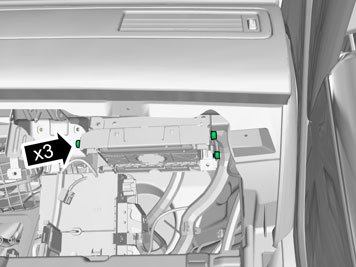

- Remove the three screws in the control module and withdraw it from the holder. The screws will be reused.





- Disconnect the connectors from the control module and remove it.

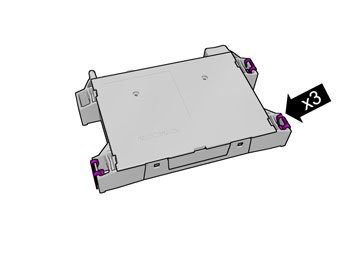

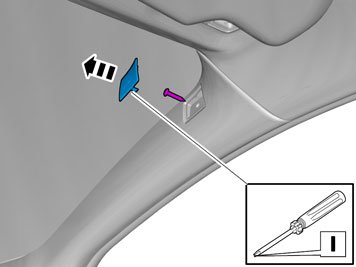

- Remove the spring nuts. They will not be used again.

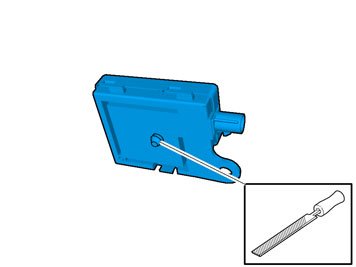

- Take GPS-antenna from the kit and carefully file off the lug on the underside.


Illustrations A and B

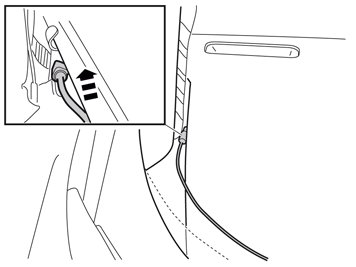

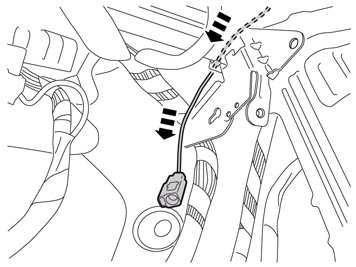

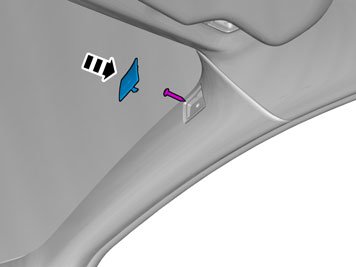

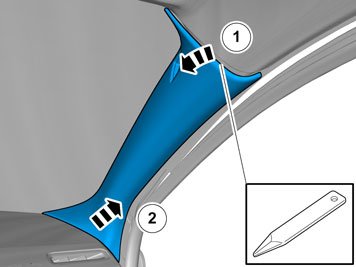

- Remove the GPS cable from the kit and insert it down through the hole in the dashboard at the right hand A-post.
- Pull it out as illustrated in image B.

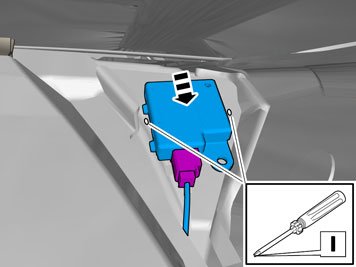

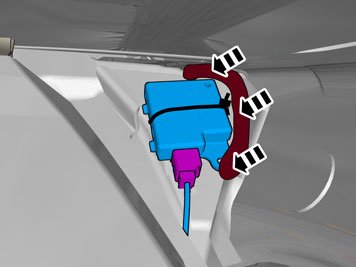

- Place the GPS antenna on the insulation mat at the A-post as illustrated.
- Pierce holes in the insulation mat on both sides of the antenna.
- Move the GPS antenna.

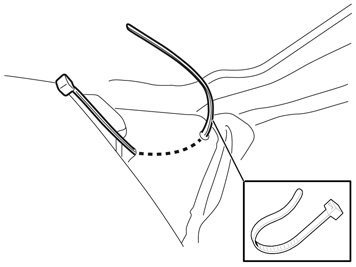

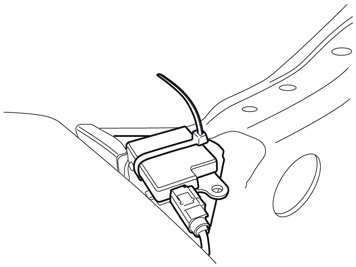

- Thread a tie strap through the holes.





- Tighten the antenna against the insulation mat.





- Take a piece of butyl tape and lay it along the insulation mat and secure it against the A post so that the insulation mat tab is held in place.

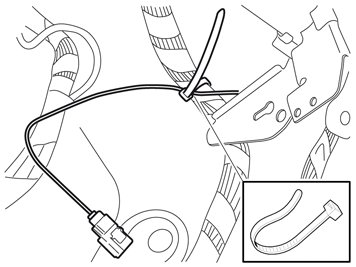

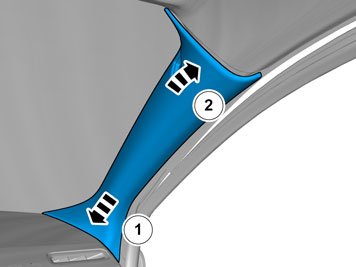

- Clamp the GPS cable to the existing cable harness.

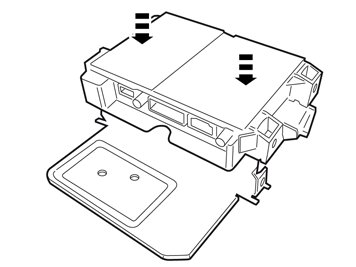

- Install the control module in the bracket.

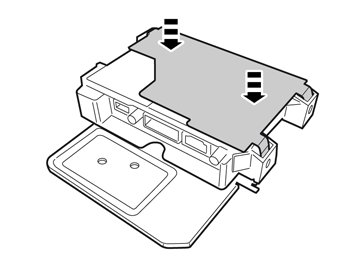

- Install the cover on the bracket.





- Position the control module where the glove box was located.

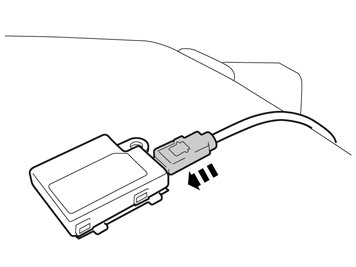

- Connect the cable (1) from the GPS.
- Connect other cables that were disconnected from the control module.


Illustrations A and B

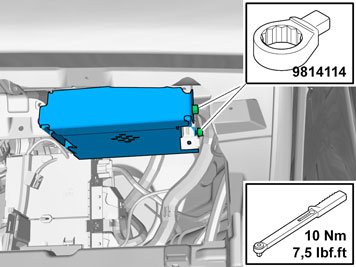

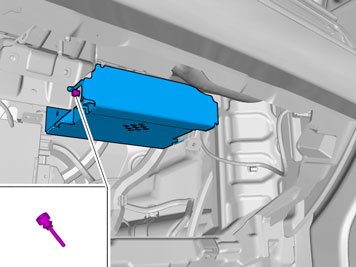

- Install the control module with brackets and tighten the three existing screws and security screw. Use insertion sleeve part.no. 9814114 when torque tightening. Ensure that the cables run correctly and do not risk being clamped or frayed.









- Take the glove box and connect the connectors on the reverse.
- Reinstall the glove box and tighten the M6 bolts to 10 Nm (7.5 lbf.ft).





- Install the screws in the lower edge.


















- Turn the ignition key to position II.
- Reconnect the battery negative lead





- Download the software for the accessory's function following the service information in VIDA.
