Forward Looking Camera: Service and Repair

Camera collision warning

Operation number: 37024

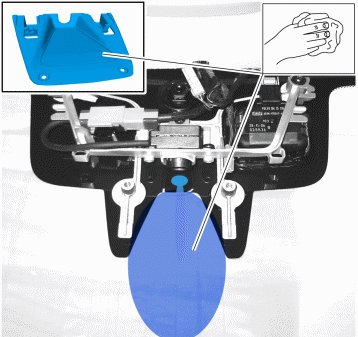

Removal

Note! Removal steps in this procedure may contain installation details.

Remove rear-view mirror inside Refer to: Inner rear view mirror Inner Rear View Mirror

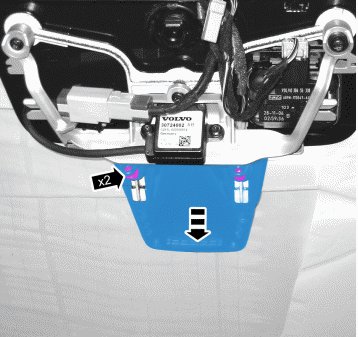

Torque: M5, 5 Nm

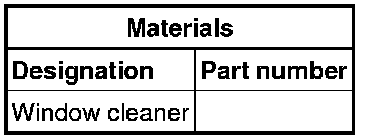

Use: Window cleaner,

Installation

To install, reverse the removal procedure.

Calibrate camera according to: DIAGNOSTICS/CAR COMMUNICATION/Advanced/FSM/Calibrating radar and camera

Order and download appropriate softwear. Programming and Relearning
