Alarm Horn: Service and Repair
Alarm, Volvo Guard Alarm System, siren
INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The front page gives the date of this edition and the edition it replaces
- The second page shows the tools needed for the installation and the contents of the installation kit
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section
- Cut out the text page in order to follow the illustrations and text at the same time.
Alarm, Volvo Guard Alarm System, siren
- Set the ignition to position 0.
Applies to cars where LEDs are to be replaced.
- Carefully bend loose the diode/sensor in the instrument panel.
- Unplug the connector from the LED and move aside.
- Get the new LED. Connect it to the connector and install it by pressing it in the instrument panel.

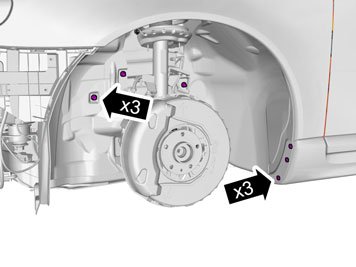

- Remove the five screws in the leading edge of the wheel housing on both sides.
- Remove the three plastic clips in the lower edge of the bumper casing.
- Remove the seven clips in the upper edge of the bumper casing.
Hint: Get help from a colleague when doing this work.
- Fold out the bumper casing's ends on both sides, they are installed with two clips to the front fender and three under the headlight.
- Pull loose the bumper cover forward in one piece.
- Loosen the connector and delivery line to the high-pressure washer (figure B). Use a container to collect the washer fluid from the disconnected hose.
- If the vehicle is equipped with fog lights or parking assistance, loosen the connectors for these.
Note! The hood lock on the car's right side shall be replaced with a new from the kit for both right-hand and left-hand drive cars. Marking is sound on both sides of the hood lock for right-hand and left-hand drive cars. Marking for car model in question shall be turned to face outward.
- Remove the screws in the hood lock and fold it forward.
- Turn down the hood lock and loosen the wire.
- Lay aside the hood lock, new hood lock is included in the kit.
Illustrations A and B

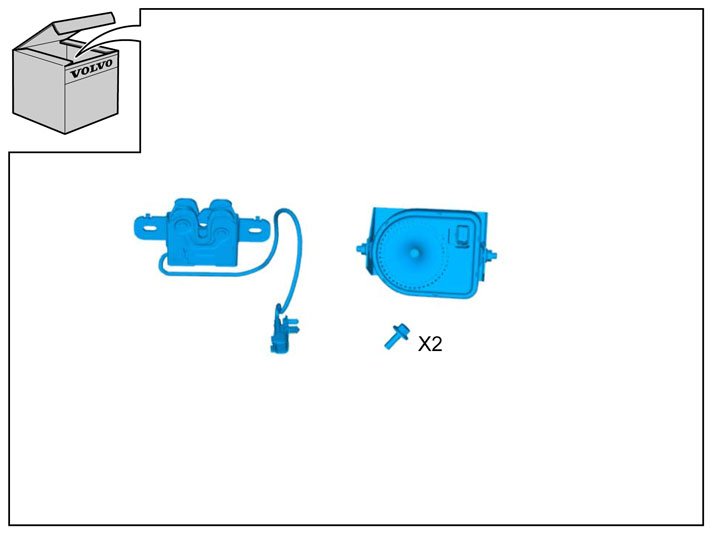

- Take the new hood lock from the kit. On cars with eight cylinder engine, the front engine casing may have to be loosened to find the pre-wired connector and to access the hood lock's connector.
- Insert the lead with the connector between the soft panel and the headlight's bracket, and pull it in to the trailing edge of the headlight bracket. Route the lead in all the way to the holes for the connector's attachment. The panel must be bent slightly to get through the connector. Carefully press through the connector with a small screwdriver.
Note! take care of the two leads.
- Install the wire in the hood lock.
- Bolt on the hood lock loosely with existing screws.
- Align the hood lock sideways using the hood's lock brace.

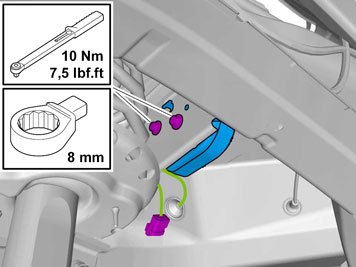

- Torque the nuts for the hood lock with 10 Nm (7.5 Lbf.ft.).

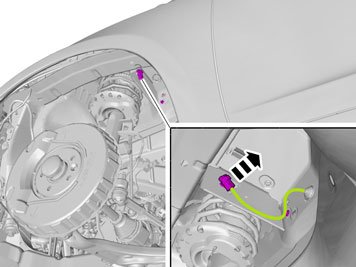

- Route the lead from the hood lock and plug in the connector to the pre-wired black, 2-pin connector on the coarse cable harness behind the headlight's placement.
- Press the connectors with holders into the holes in the plate against the headlight.
- Disconnect the connector from its cradle.
- Remove the cradle with clips, they will not be reused.
- Install the bracket with siren.
- Tighten and torque tighten.
Use tool, P/N 9814114.

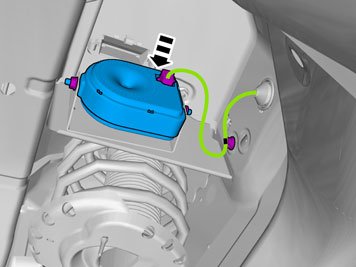

- Connect the siren.
Hint: Get help from a colleague when doing this work.
- Plug in the connector and delivery line to the high-pressure washer.
- If the vehicle is equipped with fog lights or parking assistance, plug in the connectors for these.
- Reinstall the bumper casing and make sure that all catches engage (figure B).
- Press the existing seven clips into place in the bumper casing's upper edge.

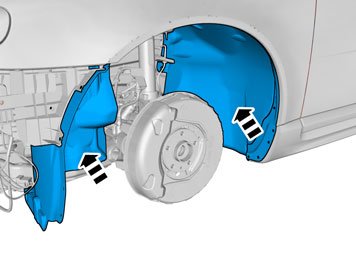

- Tighten the bumper casing to the inner fenders with existing screws on both sides.
- Press the existing three clips into place in the bumper casing's lower edge.
- Download software for the accessory's function.
