Antenna Amplifier: Service and Repair

Antenna amplifier, radio

Operation number: 39580-2, 38581-2

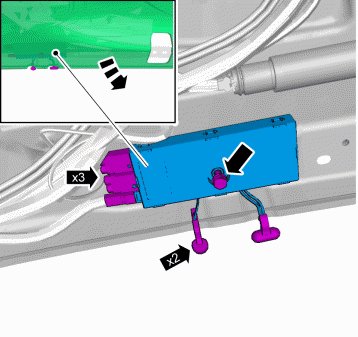

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the D-pillar trim panel Refer to: Panel, D-pillar Panel, D-Post, Replacing




Torque: M6, 10 Nm





Caution! Take extra care not to crease the headliner.

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.
