Fault-Tracing

Fault-tracing

No communication

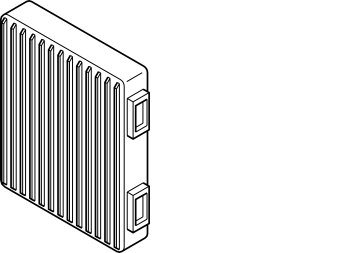

The cause of the fault is probably that software has not been downloaded or that the download failed when replacing the subwoofer module (SUB).

Hint: When downloading software after replacing a control module, the serial number of the control module is stored in the central electronic module (CEM). This is so that the Infotainment Theft Protection (ITP) function can approve the control module.

- Load new software into the control module.
If the fault persists after software download, try replacing the control module.

Other information
- Subwoofer module (SUB) Subwoofer Module (SUB), Replacing





Continue - Verification

-------------------------------------------------

Verification









Hint: After carrying out the repair check that the fault has been remedied.

- Ignition on.
- Reinstall the connectors, components etc.
- Ignition on for at least 12 seconds.
Read out the control module's id-number by clicking on the symbol for VCT2000.





Can the control module ID be read off?

Yes - DONE

No - Information

-------------------------------------------------

Information
The fault must be diagnosed and remedied. As this is not the case, the fault-tracing has failed.
Exit fault-tracing or try again.

Do you want to exit fault-tracing?

Yes - Exit fault-tracing

No - No communication

-------------------------------------------------
