Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information TCM-P093112

Condition




The gear selector module (GSM) is located at the rear edge of the gear shift assembly's left side. The Gear selector module (GSM) communicates with the Transmission control module (TCM) via an internal network, Local Interconnect Network (LIN), to activate the shift-lock function among other things.
The diagnostic trouble code (DTC) is stored if the control module detects that:

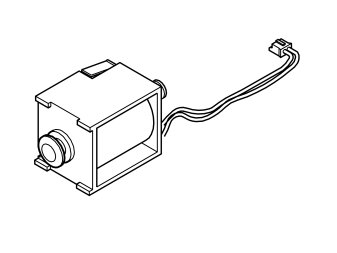

- The solenoid's driver stage is active when it should be inactive.
The control module's test for the diagnostic trouble code (DTC) starts in the event of:
- Ignition on.

Note! The control module can only detect the fault once the test has been started and the diagnostic trouble code (DTC) is stored when the conditions are met.

Substitute value
- No blocking of the gear selector.

Possible source
- Short-circuit to ground in the signal cable.
- Internal fault in gear selector module (GSM).

Fault symptom[s]
- Gear lever movable with ignition off
- Text window and warning symbol/Yellow symbol and text message
