Fault-Tracing Information

Fault-tracing

Checking the status




- Ignition on.
- Read out the status of the P position sensor.
Move the gear selector to gear position D. Then move the gear selector lever back to the P position. Status should indicate whether the gear selector is in the P position.
If the status changes, this is an indication that the fault was present previously but is not active at the moment, i.e. an intermittent fault.





Continue - Checking the component

-------------------------------------------------

Checking the component




- Ignition off.
- Release the gear selector.

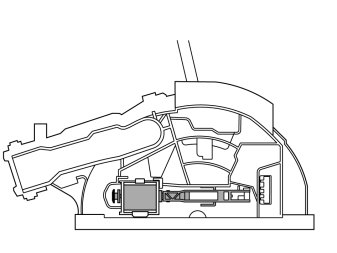

Check that the control arm between the shiftlock solenoid and the gear selector module (GSM) is correct installed.
If no fault can be found, replace the gear selector module (GSM).

Other information
- Expose the gear shift assembly as follows: Solenoid gear selector assembly, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC, B6324S4, TF-80SC AWD Solenoid Gear Selector Assembly
- Top panel gear selector assembly, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC, B6324S4, TF-80SC AWD Top Panel Gear Selector Assembly





Continue - Verification

-------------------------------------------------

Fault-tracing information

Attempt New Test - Checking the status

-------------------------------------------------

Verification




Verification

Hint: After carrying out the repair, check that the fault has been remedied.




- Ignition off.
- Reinstall the connectors, components etc.
- Ignition on.
- Read out the status of the P position sensor.
Move the gear selector to gear position D. Then move the gear selector lever back to the P position. Status should indicate whether the gear selector is in the P position.





Was the function OK?

Yes - FAULT FOUND

No - FAULT-TRACING FAILED

------------------------

FAULT-TRACING FAILED - Fault-tracing information

-------------------------------------------------
