Fault-Tracing Information

Fault-tracing

Checking the voltage and ground terminal

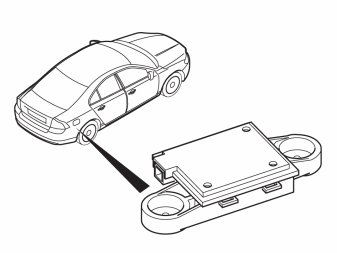

Check the fuse for heart beat sensor on Central electronic module (CEM).
Check the cable for the supply voltage for breakage and a short-circuit to ground.
Check the ground cable. Check for loose connections, contact resistance and oxidation. Check for an open-circuit.
Check communication with the heart beat sensor by reading out the sensor's status.

Note! Read-out shall give a valid answer. The answer from the sensor may vary depending on the status in which the sensor is.

If no other problem is found and if the sensor does not respond to communication, the sensor should be replaced.
Remedy as necessary.

Other information
- Heart beat sensor Service and Repair
