Rear Door Sun Blind

Sun blind, Rear door























INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text

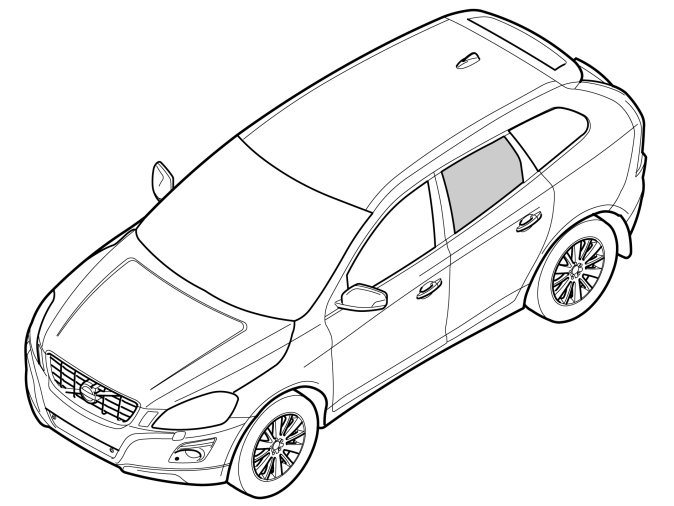

Sun blind, Rear door

Installation of the sun blind

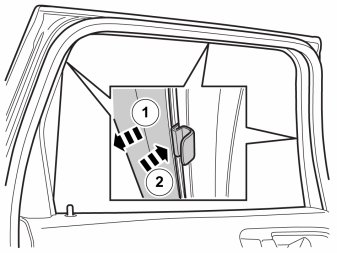

- Open the rear door. Move the rubber strip on the door arch's upper and front edge to one side in order to access the panel edges.

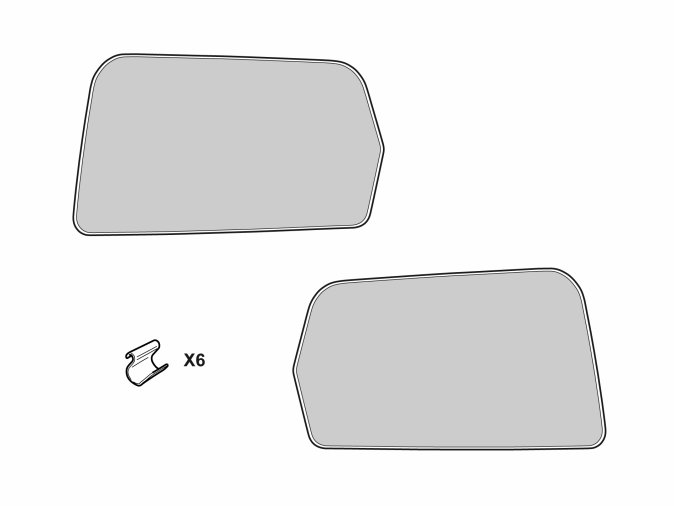

- Install the clips, as illustrated.





- Reinstall the rubber strip.

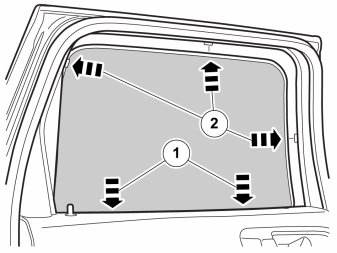

- Position the sun blind's lower edge on the panel at the lower edge of the side window. Then press it into the three clips.
- Repeat the operation on the other side.
