Transfer Case Vent

Transfer Case Vent

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal and Installation

Remove the bevel gear. Refer to: Bevel gear, B6304T4, TF-80SC AWD, B6324S4, TF-80SC AWD, B6324S5, TF-80SC AWD Bevel Gear Bevel gear Bevel Gear.

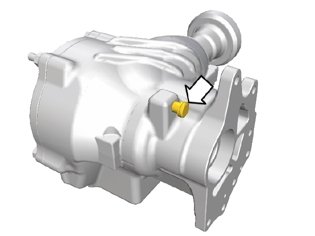

Pull out the brass pipe using cutting nippers.
Tap in the nipple using a rubber mallet.

Installation

To install, reverse the removal procedure
